Mashing System
SKE mash tun takes high extraction efficiency as its core design principle and meets three key objectives: uniform material mixing, efficient heat transfer, and flexible process adaptability.

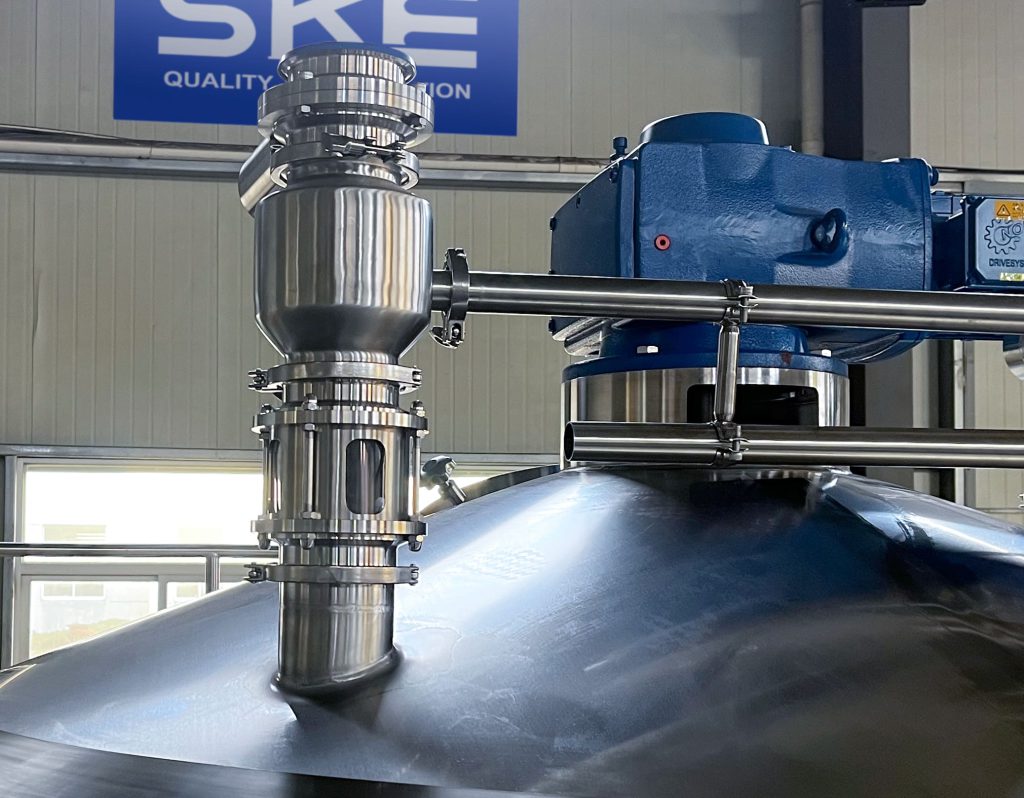

Pre-Mixing Device( Hydrator)
SKE grist hydrator enables precise grist-to-water ratio control. This ensures optimal mash slurry during mashing-in, preventing starch conversion inefficiencies from overly dry raw materials, while reducing stirring time and energy use.
With sight glass and CIP spray balls, allows easy observation and cleaning.
Mash Mixer for Breweries Bottom Stirring
SKE’s mash tun features a large headspace (≥50%) and a properly designed diameter-to-height ratio,
ensuring uniform heating of mash while achieving efficient temperature rise.

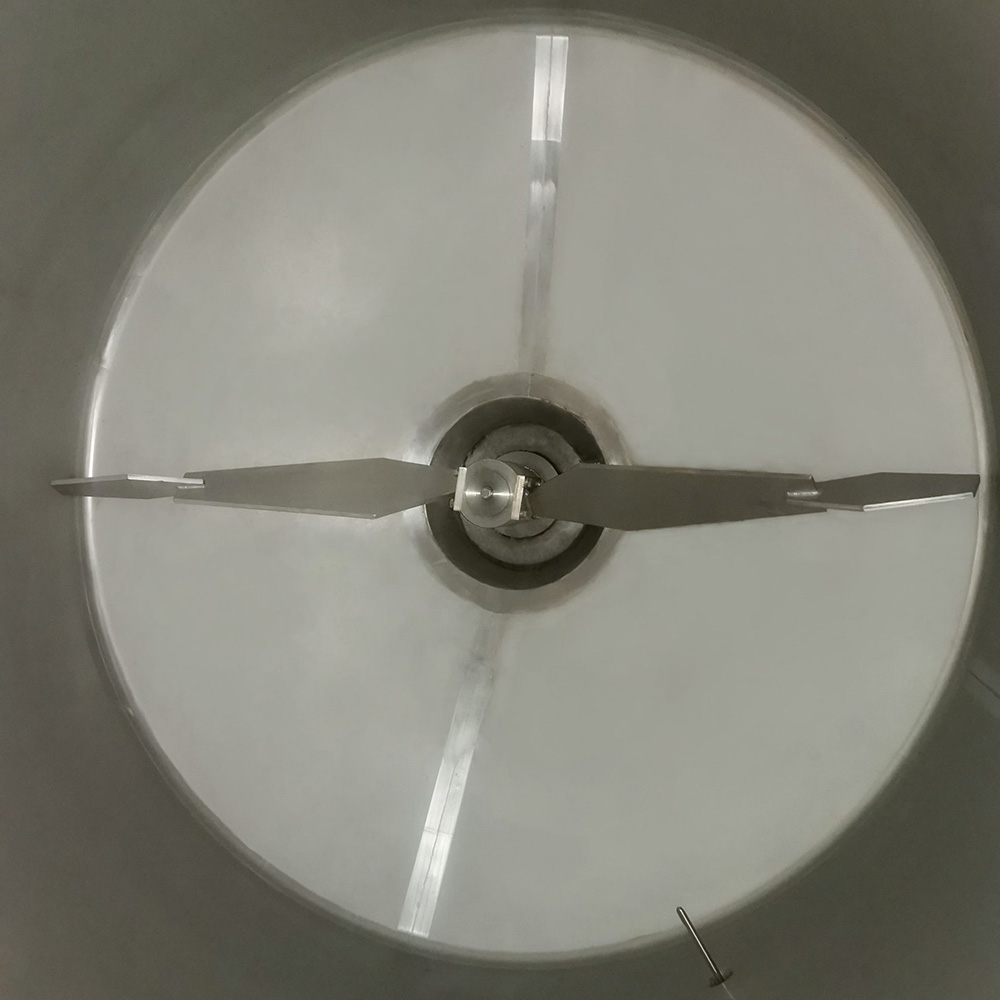

The mash agitator features a unique design that minimizes the shear force generated by the stirrer,
thereby reducing damage to enzymes in the material. And the design could ensures excellent tumbling-mixing
for better extraction efficiency,
The design also ensures no material retention and easy cleaning.
Pricise Temperature Control&Low Oxidation
- Multi-stage temperature conrol by PLC program.
- IFM temperature sensor
- Steam Pneumatic proportional control valve

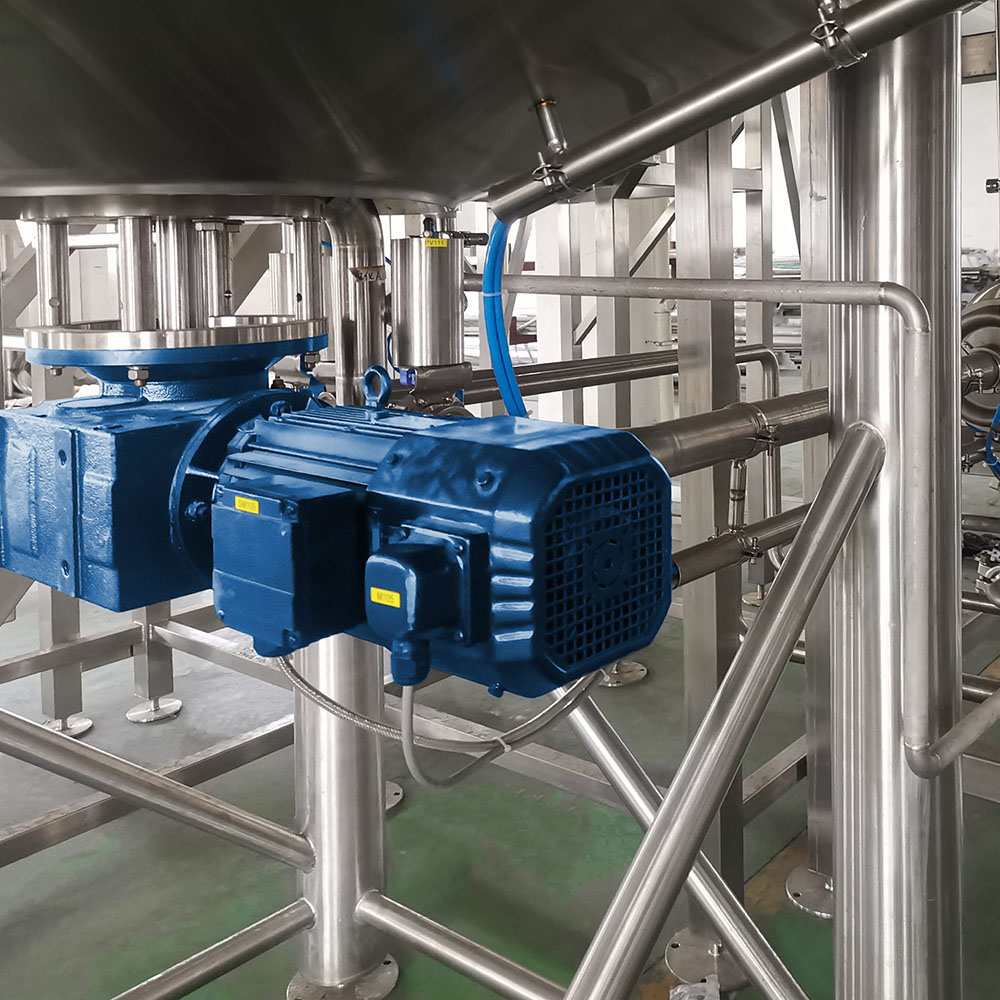

- Top/Bottom mixing motor with VFD
- Low shear lobe pump
