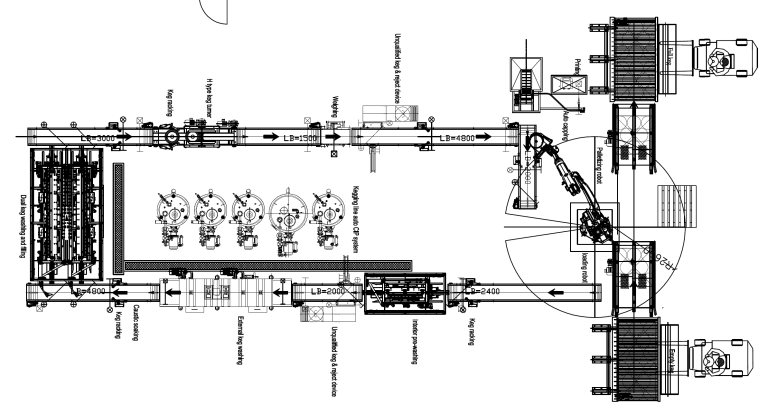

SKE offers full package line of kegs, including pasteurization, CIP, keg external cleaning, keg cleaning & filling machine, weighting device, automatic conveyor with keg turn over device and fully automatic control system.
SKE-KL-5S
SKE offers full package line of kegs, including pasteurization, CIP, keg external cleaning, keg cleaning & filling machine, weighting device, automatic conveyor with keg turn over device and fully automatic control system.
SKE-KL-5S is a high efficiency keg washing & filling line with compact constructure.
The parameters are
- Material, stainless steel 304
- Dimension, 3800mm x 1000mm x 2500mm
- Capacity, 50~60 kegs per hour
- Power, 4Kw
- Gear box, SEW
- There are five operation stations, four for internal cleaning & sterilization and one for counter pressure filling.
- Four special used Cleaning tanks, Two water tank, one caustic tank, one acid tank
- Automatic angle seat valves
- IFM level sensors & flow meters
- Siemens HMI & PLC to reach automatic control and simple operation
- Optional Keg spear
- Work for multiple keg sizes
Working Steps
#1 Station, Water Rinse for Removal Residuals
#2 Station, Caustic cleaning—Water rinse
#3 Station, Hot water cleaning
#4 Station, Steam sterilization and holding
#5 Station, CO2 counter pressure filling.
