SKE 100L Home Brewing System

SKE 100L brewery equipment is specially customized for craft brewers and home brewers. It is not only suitable for the brewers who have experience in simple home brewing and wish to transform it into commercial brewing, but also suitable for small-scale pilot brewing by the commercial and large breweries.

This 100L brewery equipment has all the functions of a completed brewery system, and comes with a mash/lauter tun, kettle/whirlpool tank, and a hot water tank.

Brewhouse Configuration

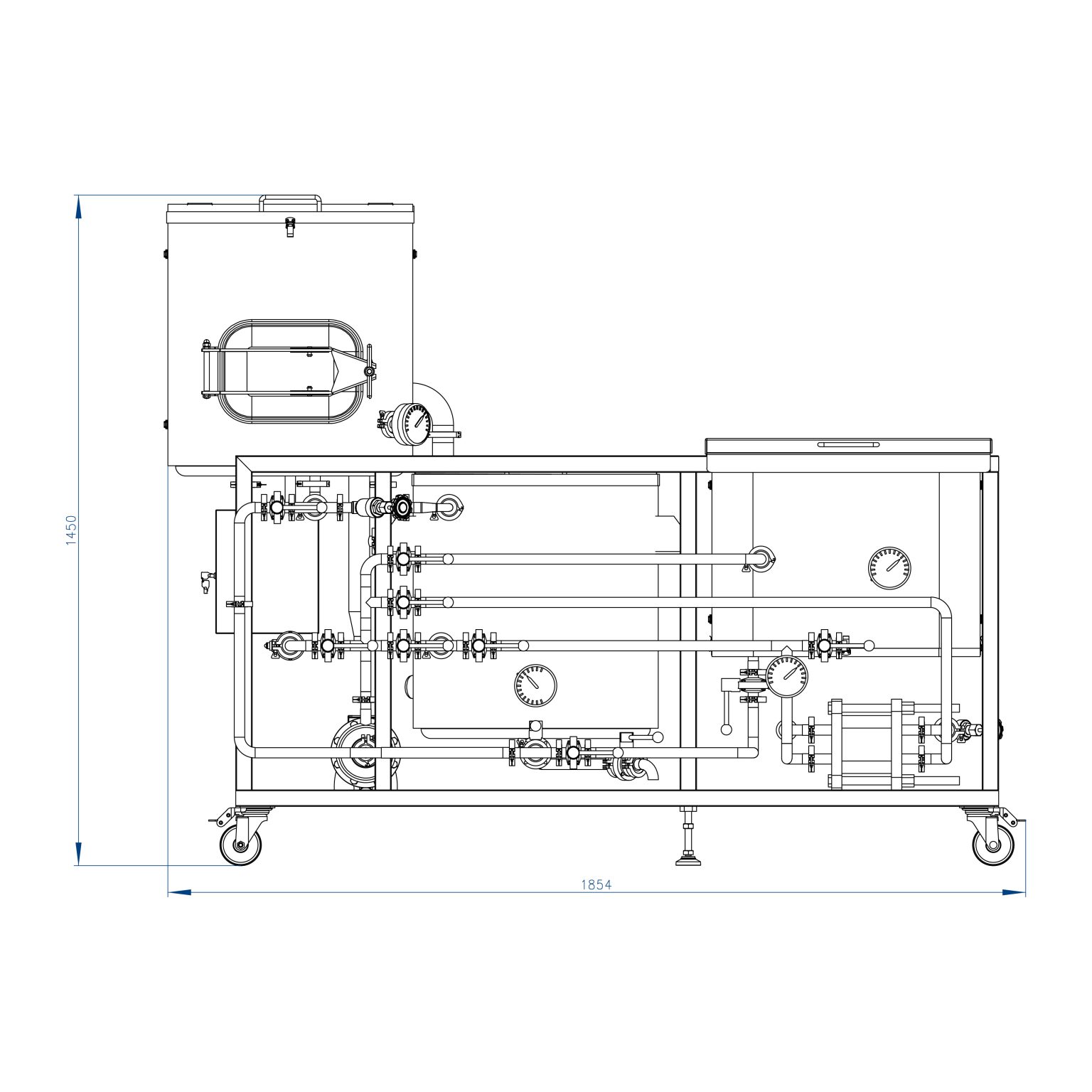

  • Dimensions, 1900 x 900 x 1500mm; Weight, 300Kg
  • Mash/Lauter tun, Kettle/Whirlpool tank, and Hot Water tank
  • Electric Heating (heating tube for KTWP, heating blanket for MMLT and HLT)
  • Centrifugal Pump
  • A single-stage Plate Heat Exchanger for wort cooling
  • Completely stainless steel integrated work platform
  • All pipings and fittings
  • Control Cabinet (Temp controller type) & Functions
    • Temp of MMLT displayed and control on the brewhouse control panel
    • Temp of KTWP displayed and control on the brewhouse control panel
    • Temp of HLT displayed and control on the brewhouse control panel
    • Centrifugal Pump ON/OFF & VFD Control
    • Alarm buzzer function


  • Have all the functions of commercial brewing
  • Compact structure, small footprint, convenient mobility, and simple operation
  • Multi temperature mashing
  • Fly sparging
  • Kettle sour
  • The design of the square HLT sliding cover serves as a cleaning pool after brewing, making the cleaning of accessories more convenient and simple
  • Competitive price
