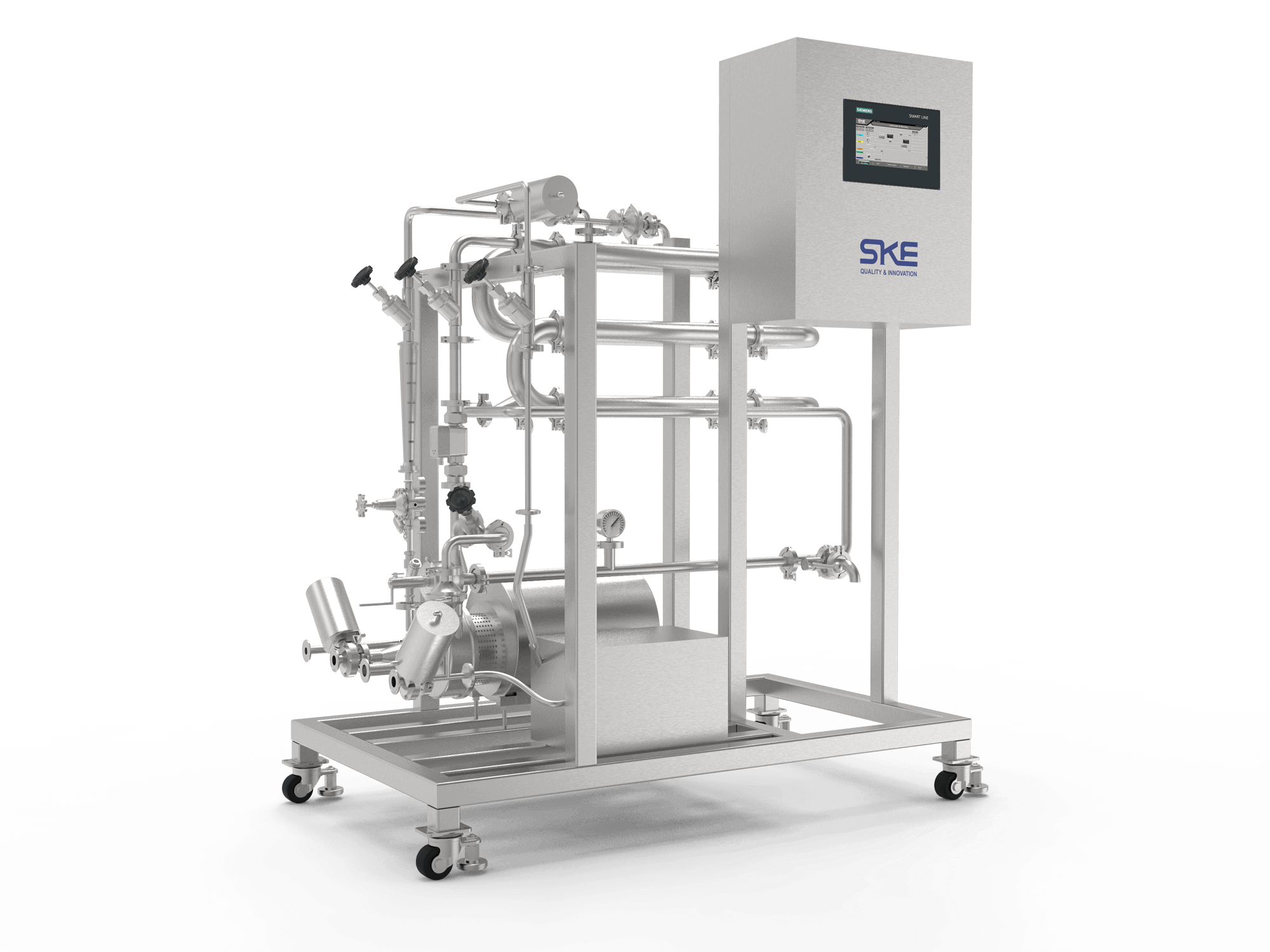

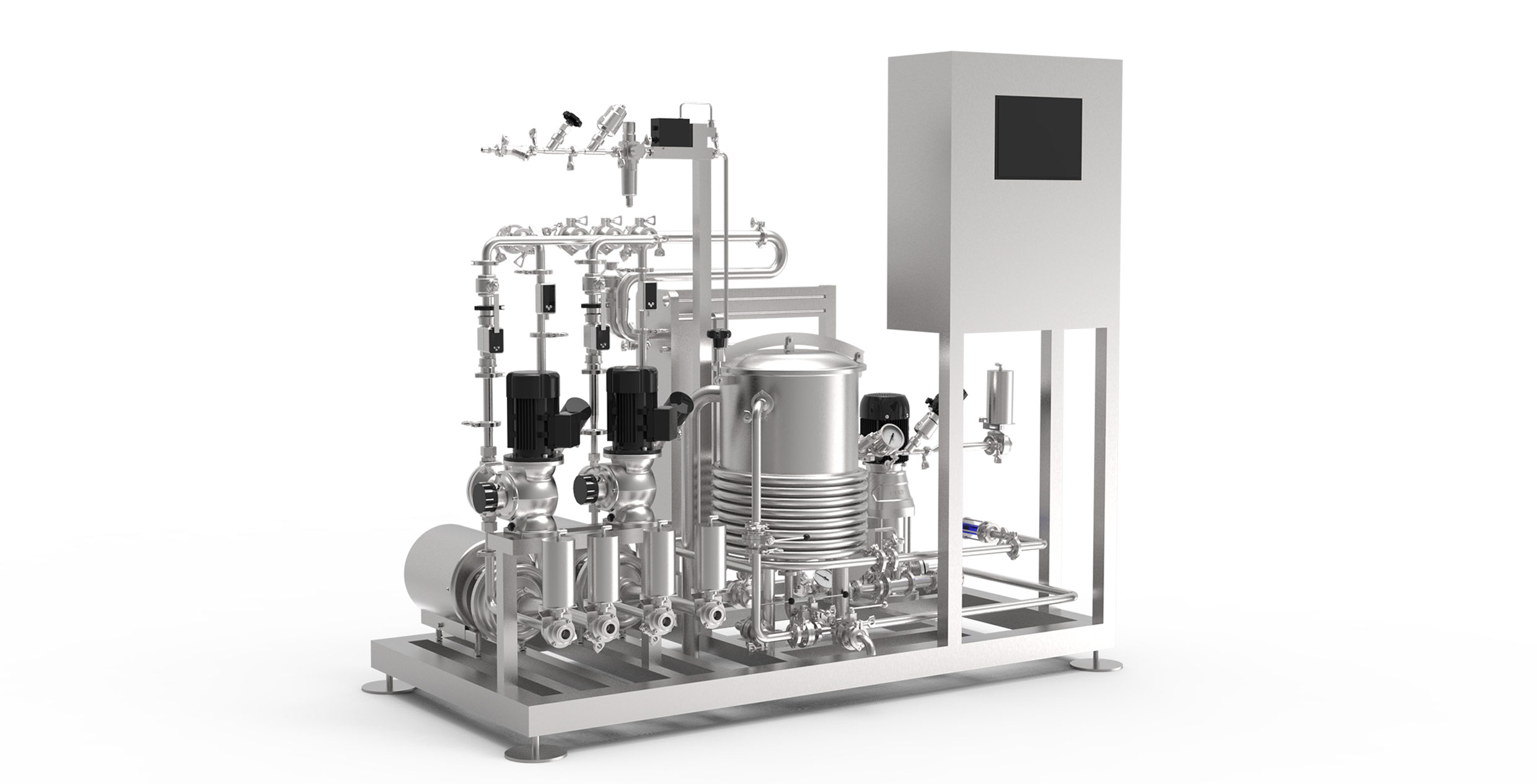

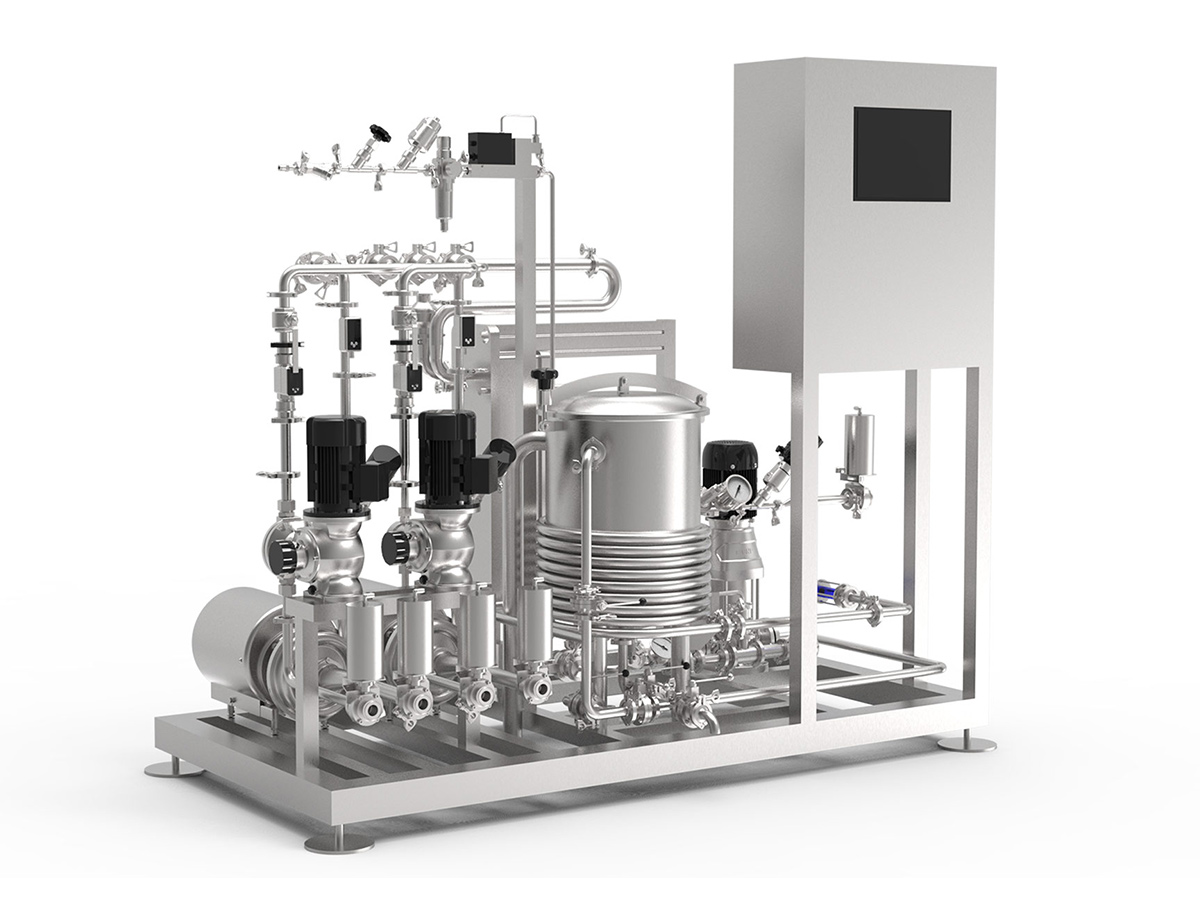

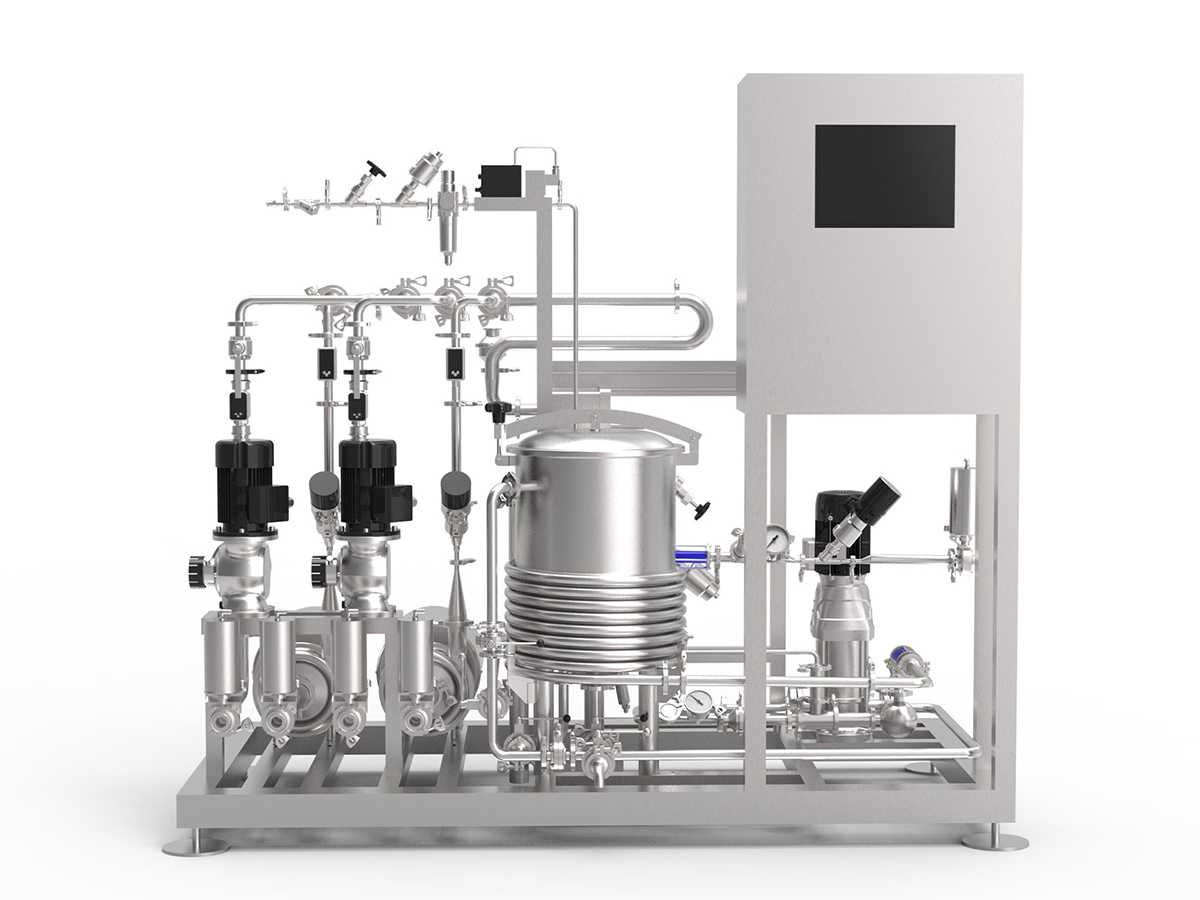

Inline Carbonation and Blending System

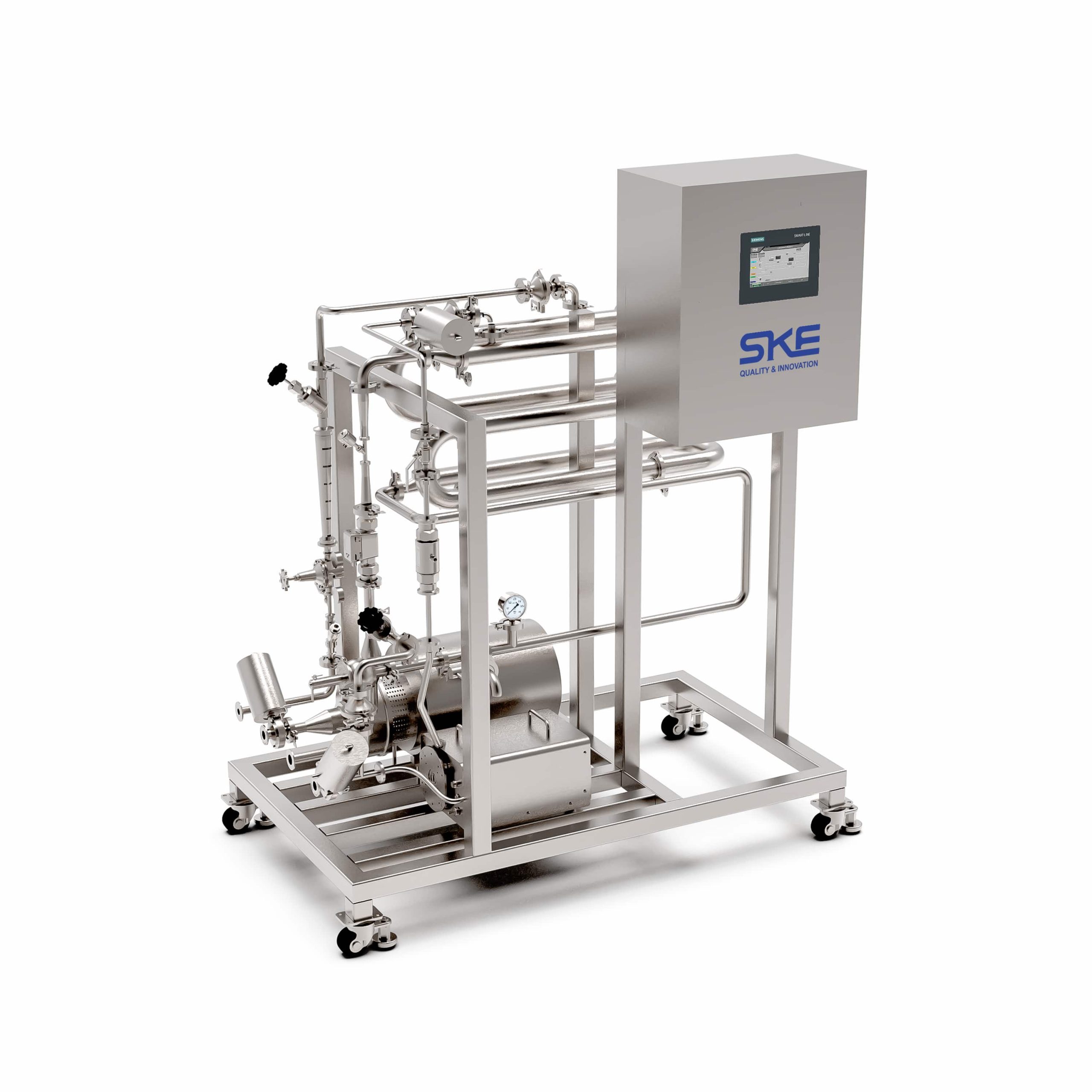

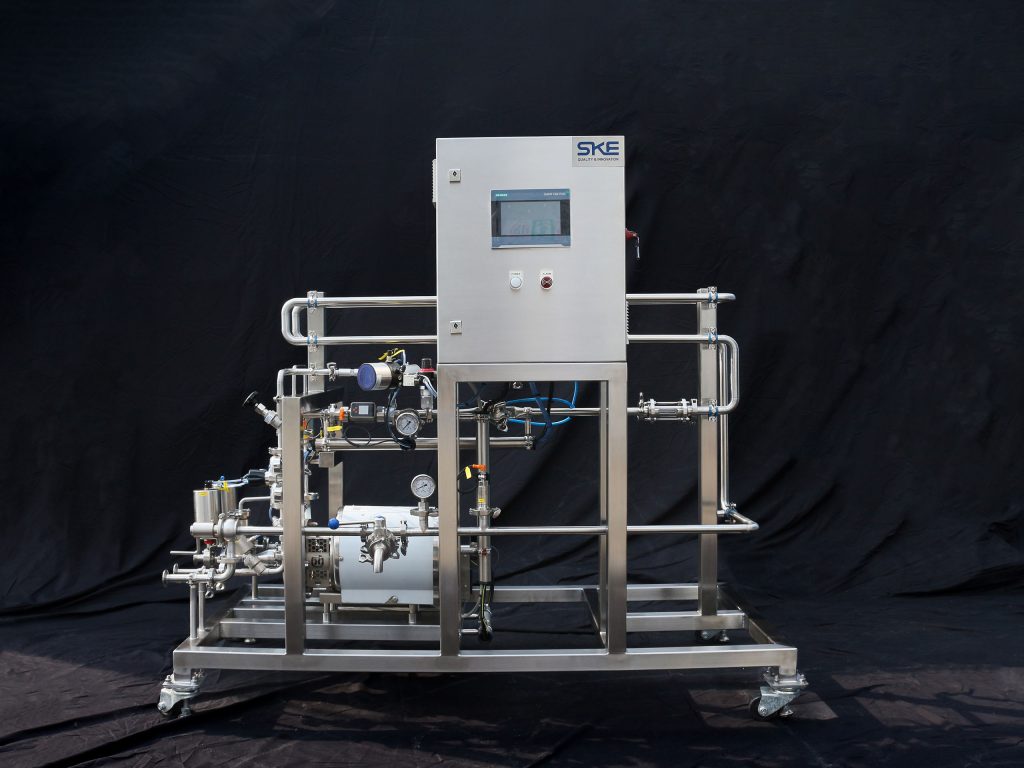

SKE Inline Auto Carbonation and Blending System stands as a revolutionary inline carbonation and blending solution, precision-engineered for the production of carbonated beer, soft drinks, ready-to-drink (RTD) beverages, and beyond—specifically tailored to the brewery and beverage manufacturing sectors.
Inline Auto Carbonation and Blending System Feature
- Precise ratio control for the base liquid andflavor dosing
- The “PIN-POINT” design, paired with micro-pore stainless steel injector plates, creates intimate gas-liquid bonding by dispersing ultra-fine 5–9 micron bubbles—enabling highly efficient CO₂ carbonation and saturation

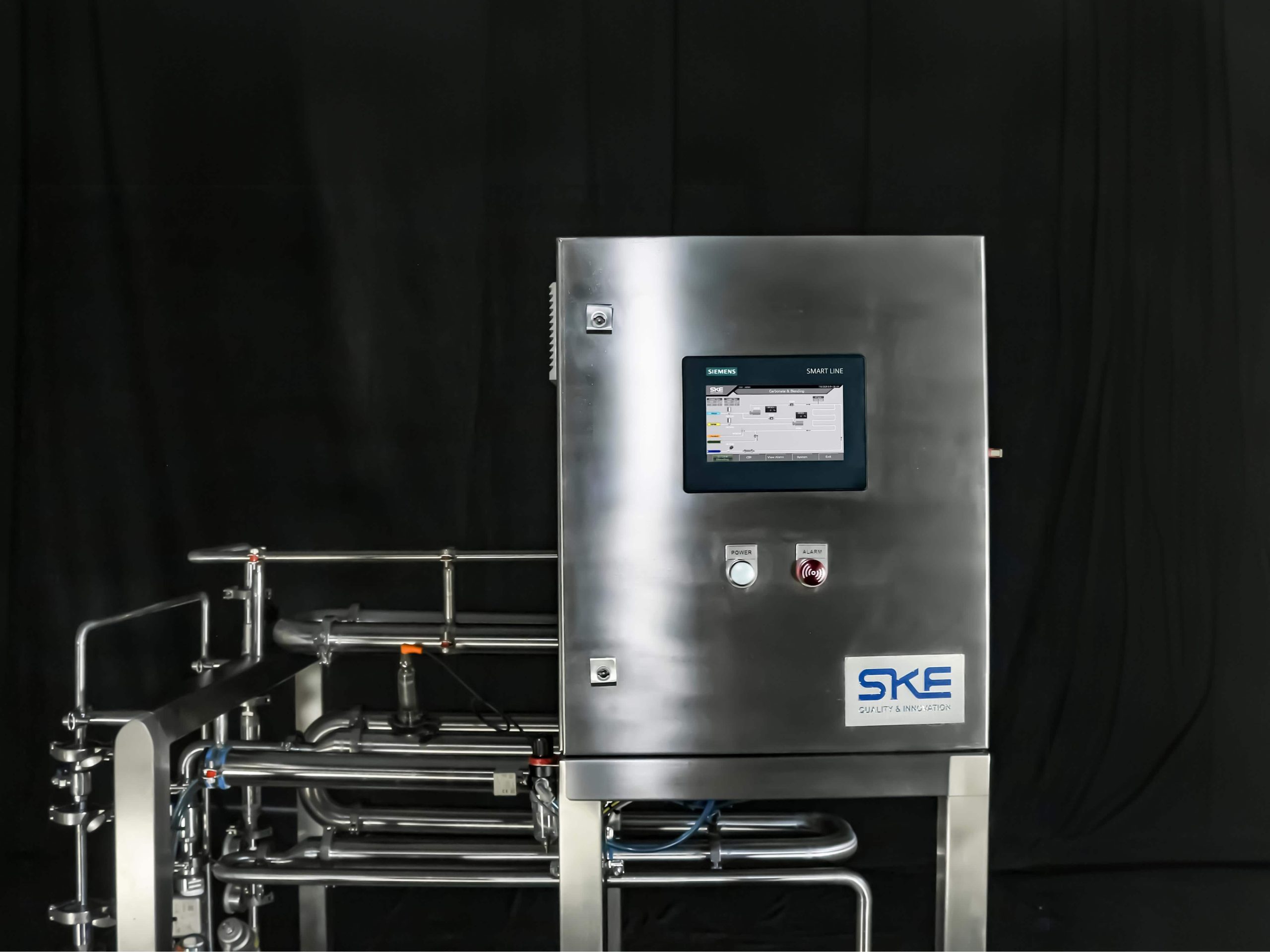

- Automatic control with PLC / HMI , recipe setting available
- Small footprint without other utility / energy wasting
- Multiple capacity available
- Customization acceptable per different product process
Working Principle
The blending configuration features an in-line static blender for mixing two streams: one for base liquids such as de-aerated water or beer, and the other for syrups, liquid flavors, or alcohol dosing. Customized solutions are available for additional streams or powder dosing.

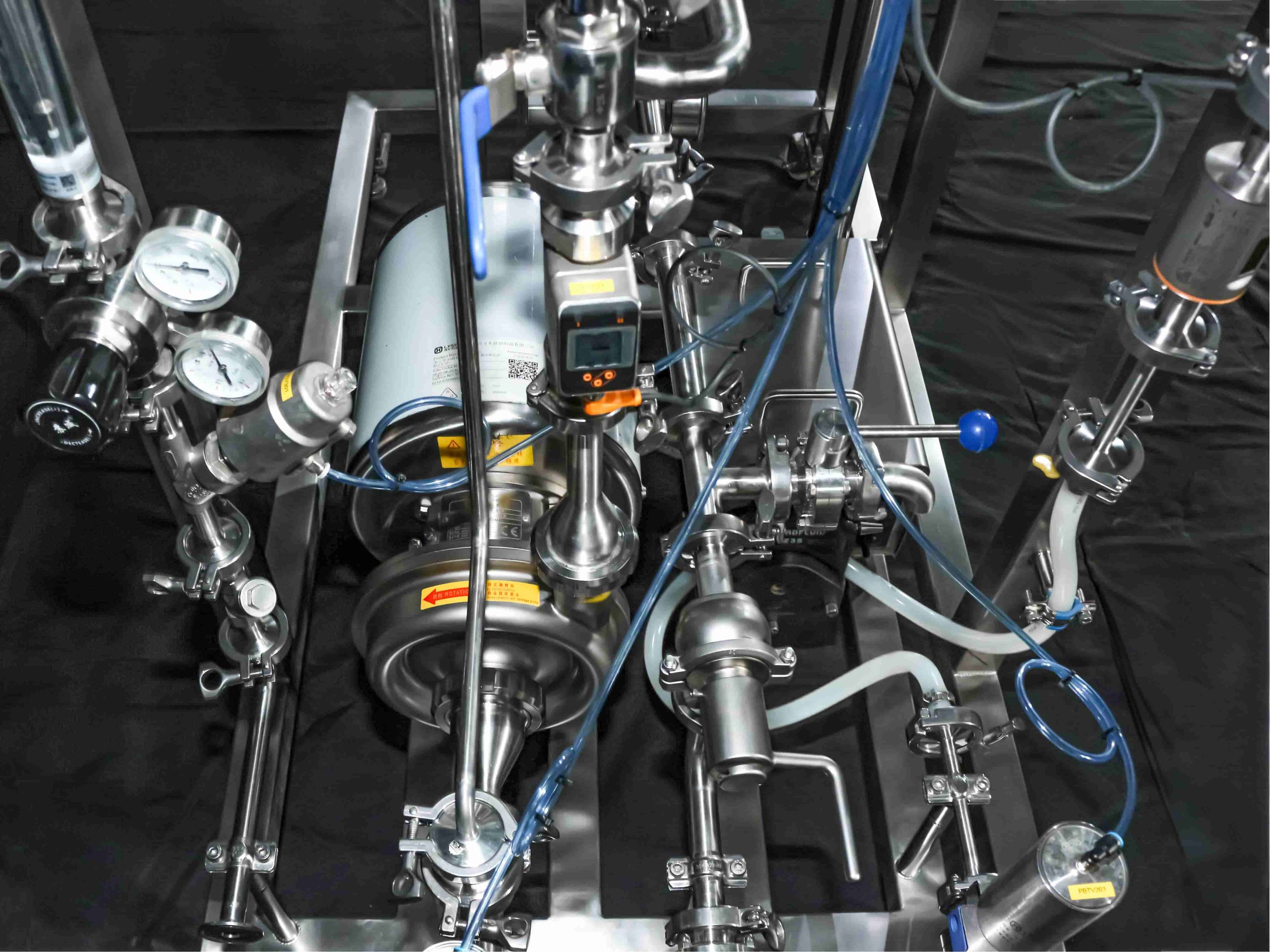

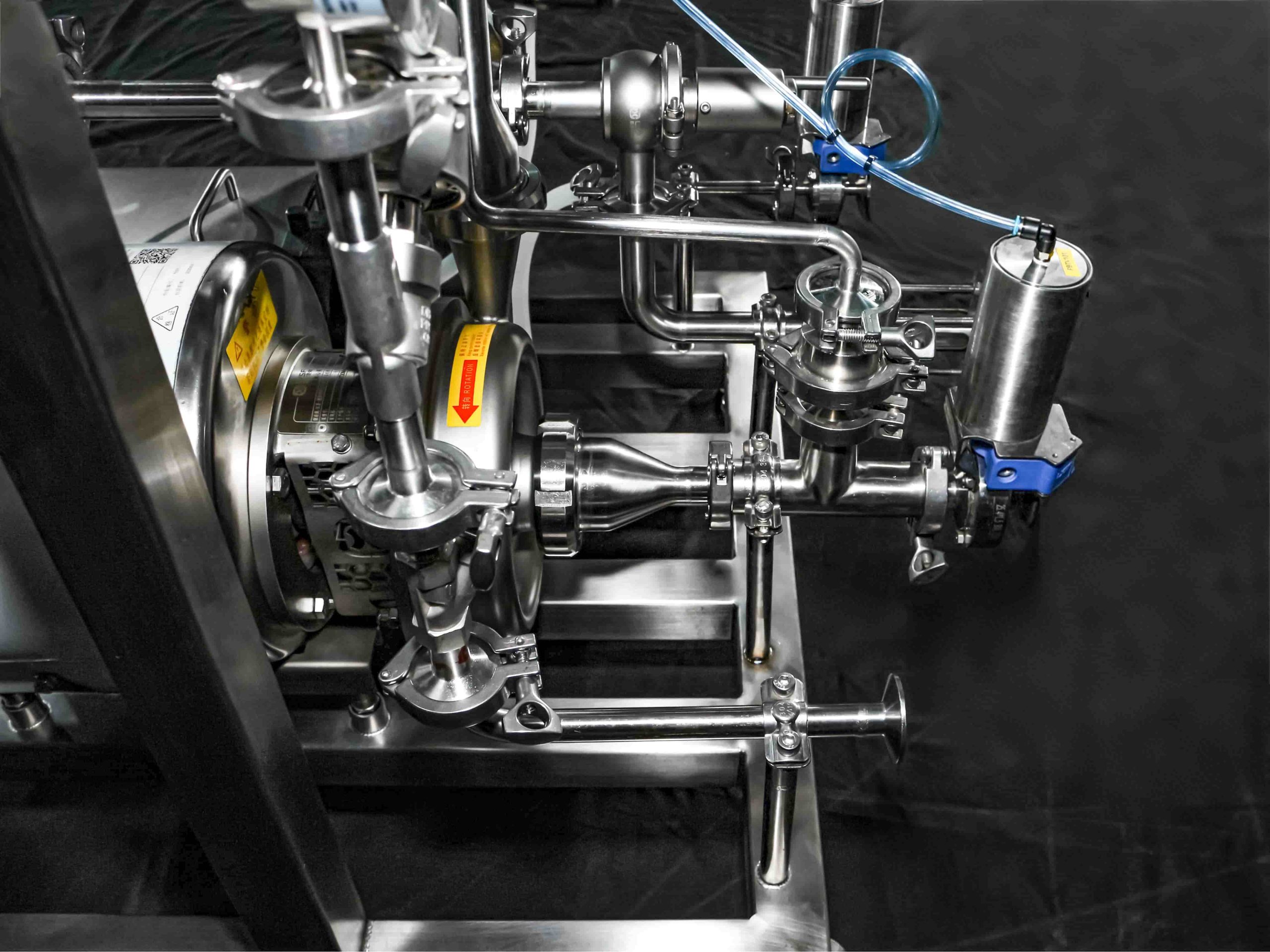

Both lines are equipped with a feed pump, flow meter, and positioning PID valve, allowing the mixing ratio to be automatically regulated based on pre-set recipes

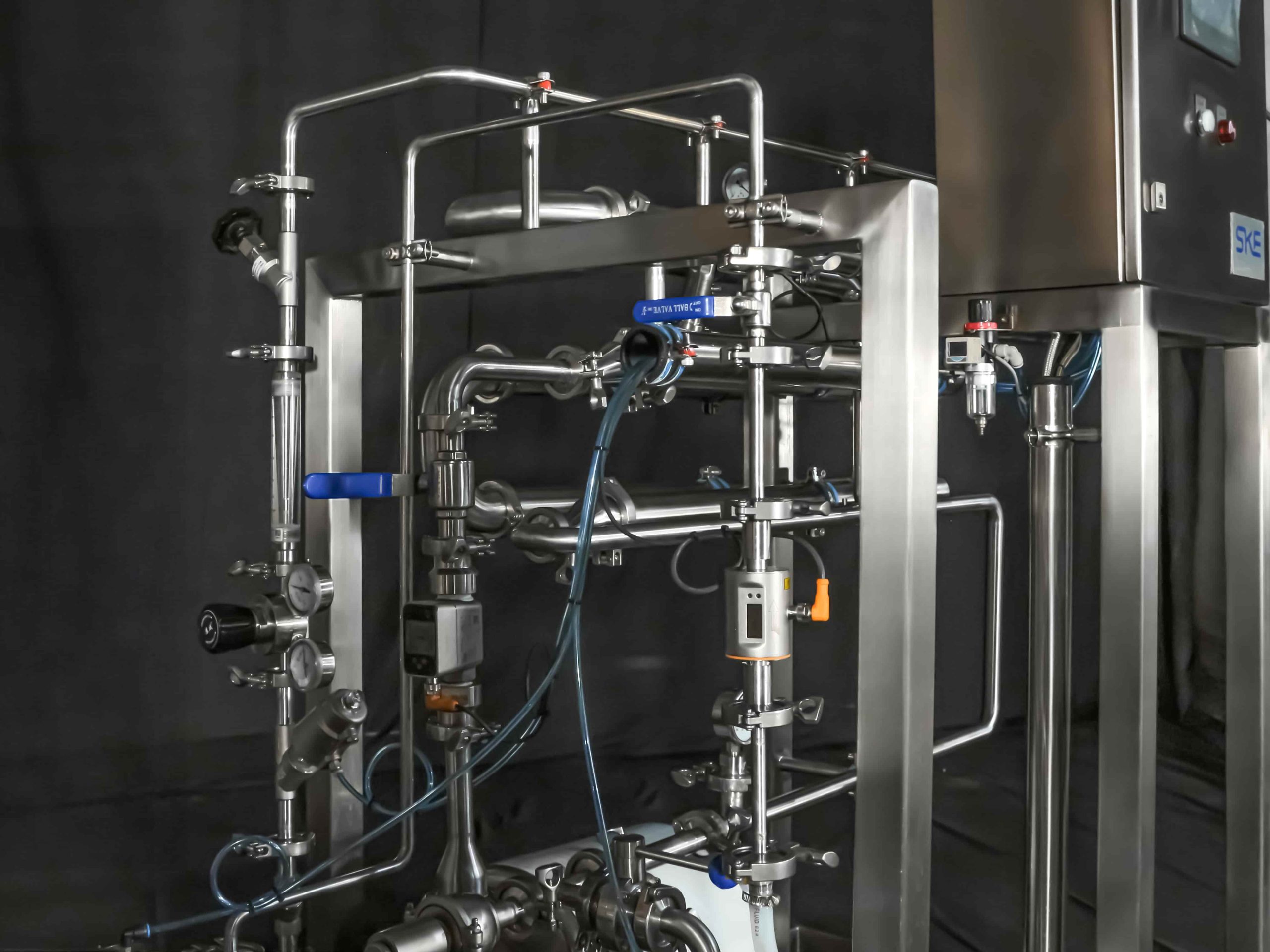

The carbonation/saturation line features an airflow meter/rotor meter and PID valves for automatic/manual CO₂ flow rate regulation, with “G/L” settings integrated into the PLC program for automated processes.
The maximum carbonation/saturation level is variable based on product temperature and other specifications, typically reaching 5.5g/l under normal operating conditions.
Fittings on the Air line was included & fitted like pressure reducer, sterile filter, angle seat valve etc.
