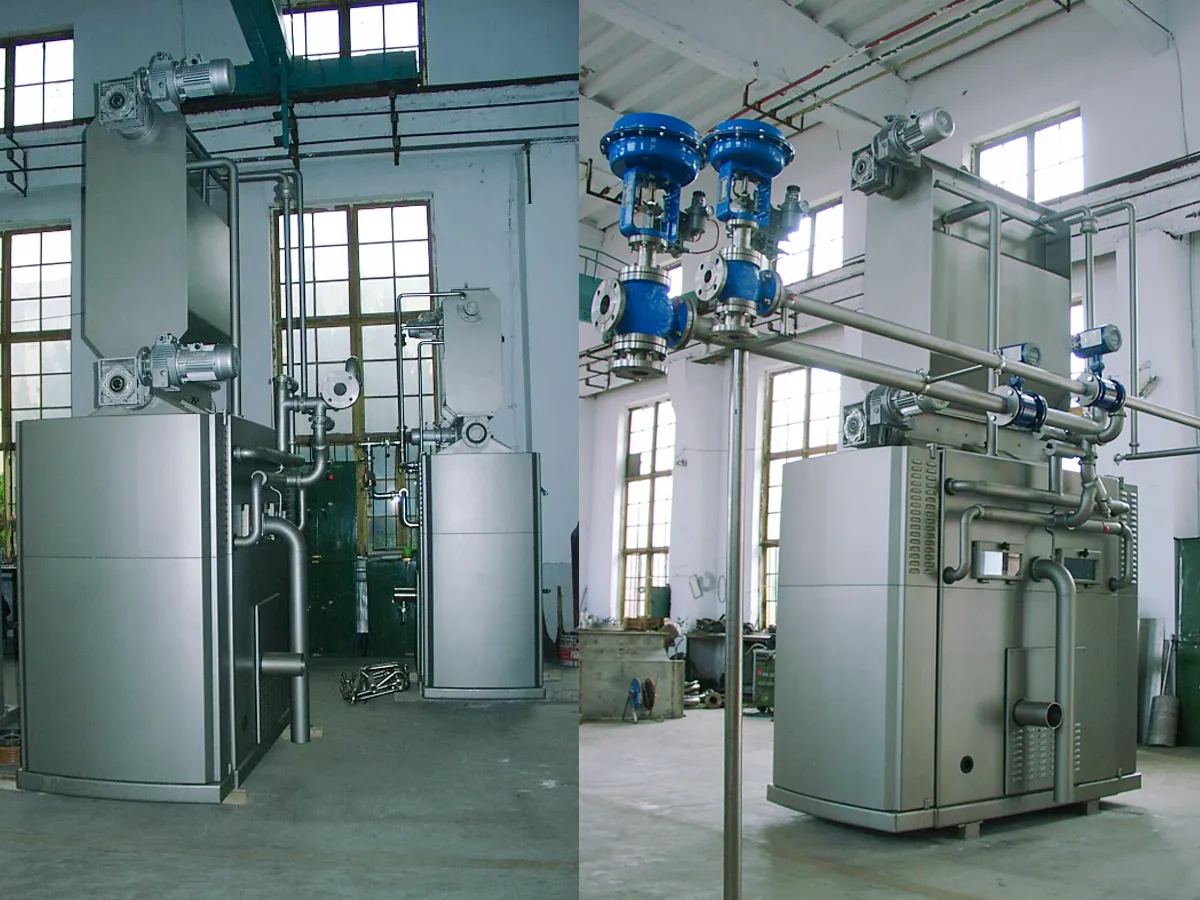

Grain Wet Miller

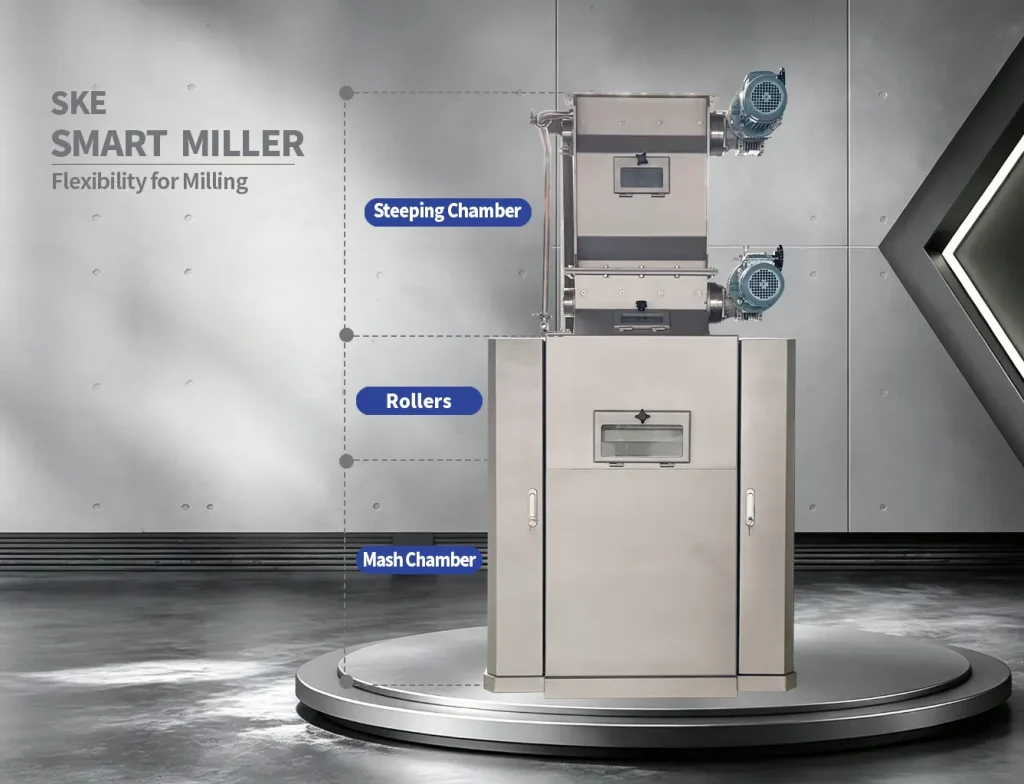

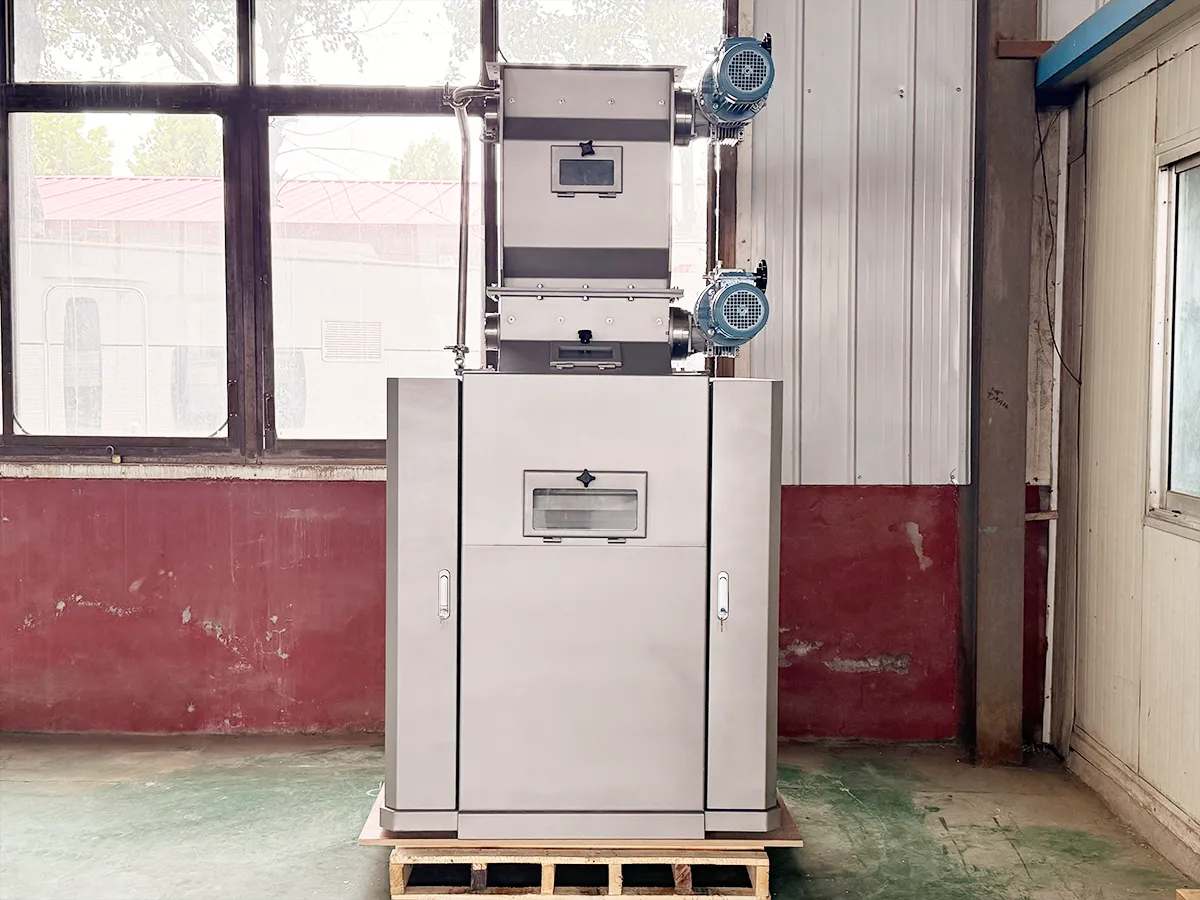

SKE Smart Miller is designed for high beer quality and process efficiency. It provides excellent grist results from malt and raw grain which means a top level extract yield and perfect lautering results. SKE Smart Miller covers a performance range suitable for middle to large industrial breweries.
Smart Miller
Advantages:
- Precise control of a grist milling rate for a constant and homogeneous mash quality
- Variable adjustment of the steeping water temperature and amount
- smooth flat interior avoids material buildup and leakage at roller end and cabinet joint.

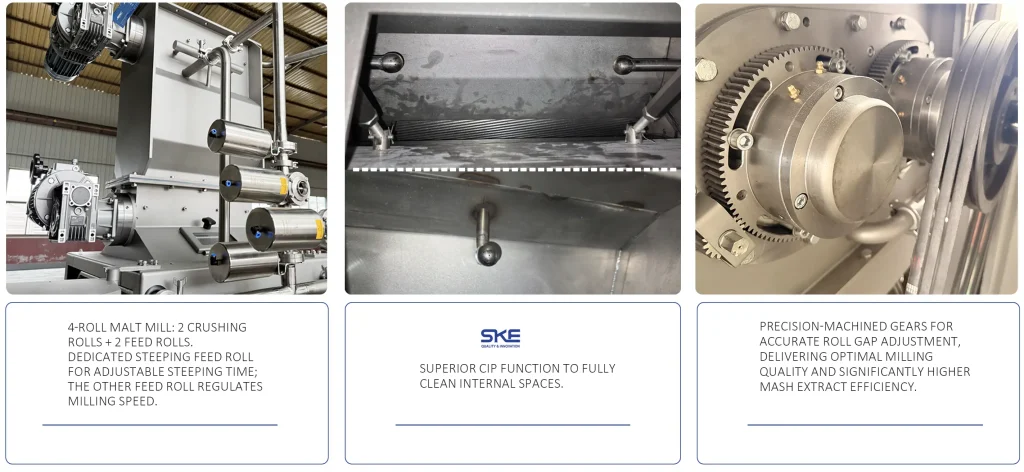

- Grouped connected belt drive for crushing roller, stable running and long service life.
- Full-auto control with remote communication functionenables unattended operation.
- Doubledoors design for easy maintenance.
- Self-CIP Function for easy cleaning
- High-quality components enable long life time ( such as :SKF roller bearing, Simens PLC, Schneider elements etc)
Technical Data:
| Type | unit | M3 | M5 | M8 | M12 | M16 | M24 |
| Capacity | T/H | 3 | 5 | 8 | 12 | 16 | 24 |

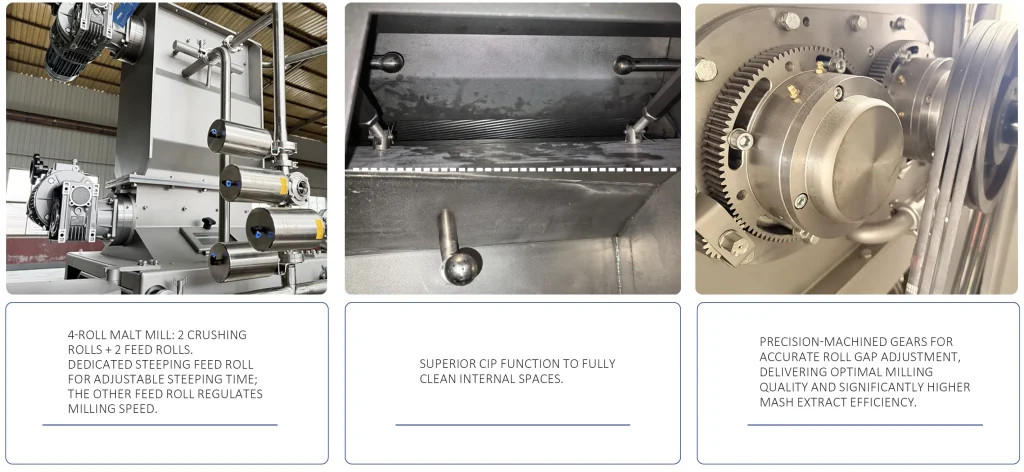

| Crush Roller | Pcs | 2 | 2 | 2 | 2 | 2 | 2 |
| Feeding Roller | Pcs | 2 | 2 | 2 | 2 | 2 | 2 |
| Power | Kw | 12.5 | 31 | 42.5 | 55 | 55 | 62 |
| Pump Delivery | Flow rate (m³/h) / Head (M) | 20m³/h / 15M | 60m³/h / 15M | 60m³/h / 15M | 80m³/h / 15M | 80m³/h / 15M | 120m³/h / 15M |
| Weight | Kg | 1750 | 2300 | 2800 | 3600 | 4000 | 4800 |
| Size | mm | 1190*760*2300 | 1550*910*2950 | 1780*975*3400 | 2050*1125*3750 | 2050*1125*3750 | 2200*1165*4150 |
| Roller Gap | 0.2~1.6mm adjustable | ||||||
| Temp Tolerance | ±0.5℃ | ||||||
| Flow Detection | Grade 5 | ||||||
| Material | High chromium stainless alloy for roller,hardness HRC56-62 Forged 40Cr alloy steel for roller shaft; Rest are made of SS304. |
||||||
| Ratio | For rice miller, water:material ratio no more than 4.2 For grain miller, water:material ratio no more than 4 |
||||||
Control Function:
- Auto CIP function via CIP program
- Available for Auto, Manual and Jog control modes
- Closed-loop control for all control points except total flow
- Self-diagnosis & fault history: HMI displays all faults via closed-loop feedback signals
- Constant material-water ratio and anti-blockage function
- Temperature & flow totalizer realized by PLC program
- With DP bus and RS485 ports & addresses for remote monitoring & unattended room

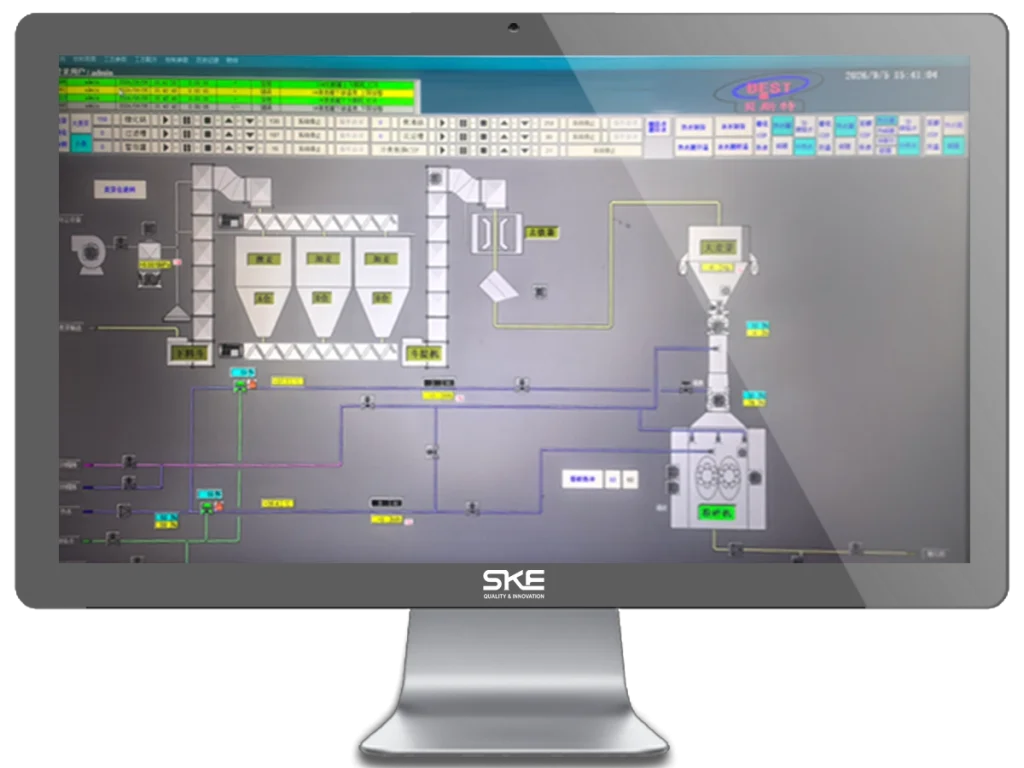

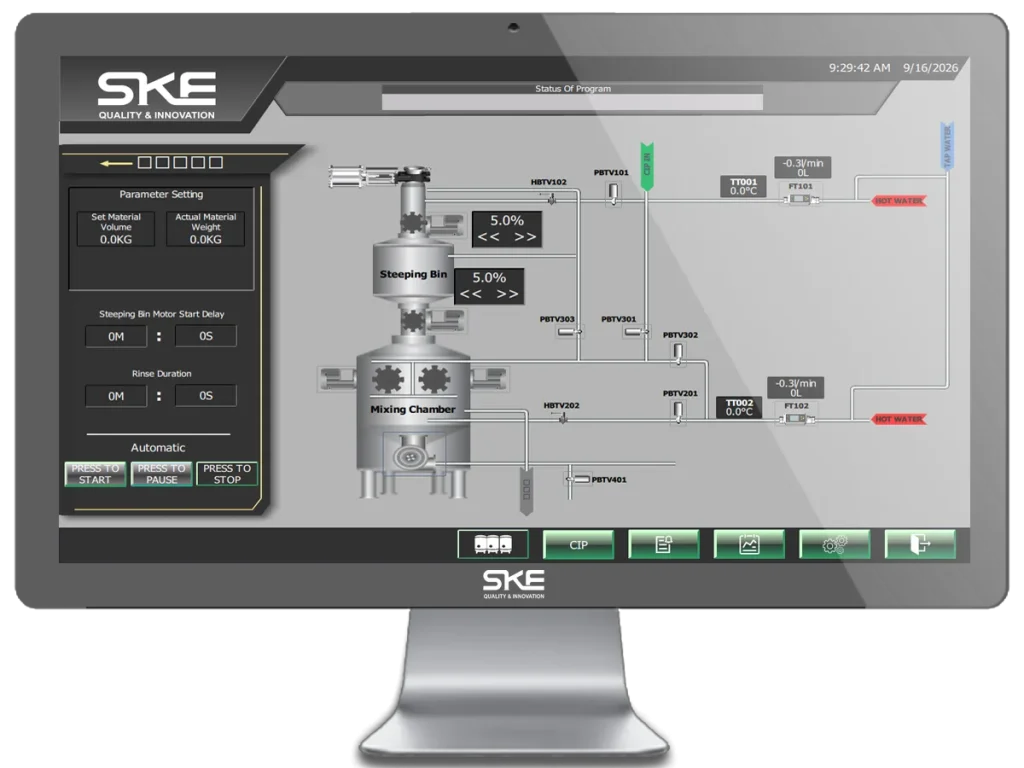

- Touchscreen dynamically displays running status, temperature, flow and other parameters via analog graphics

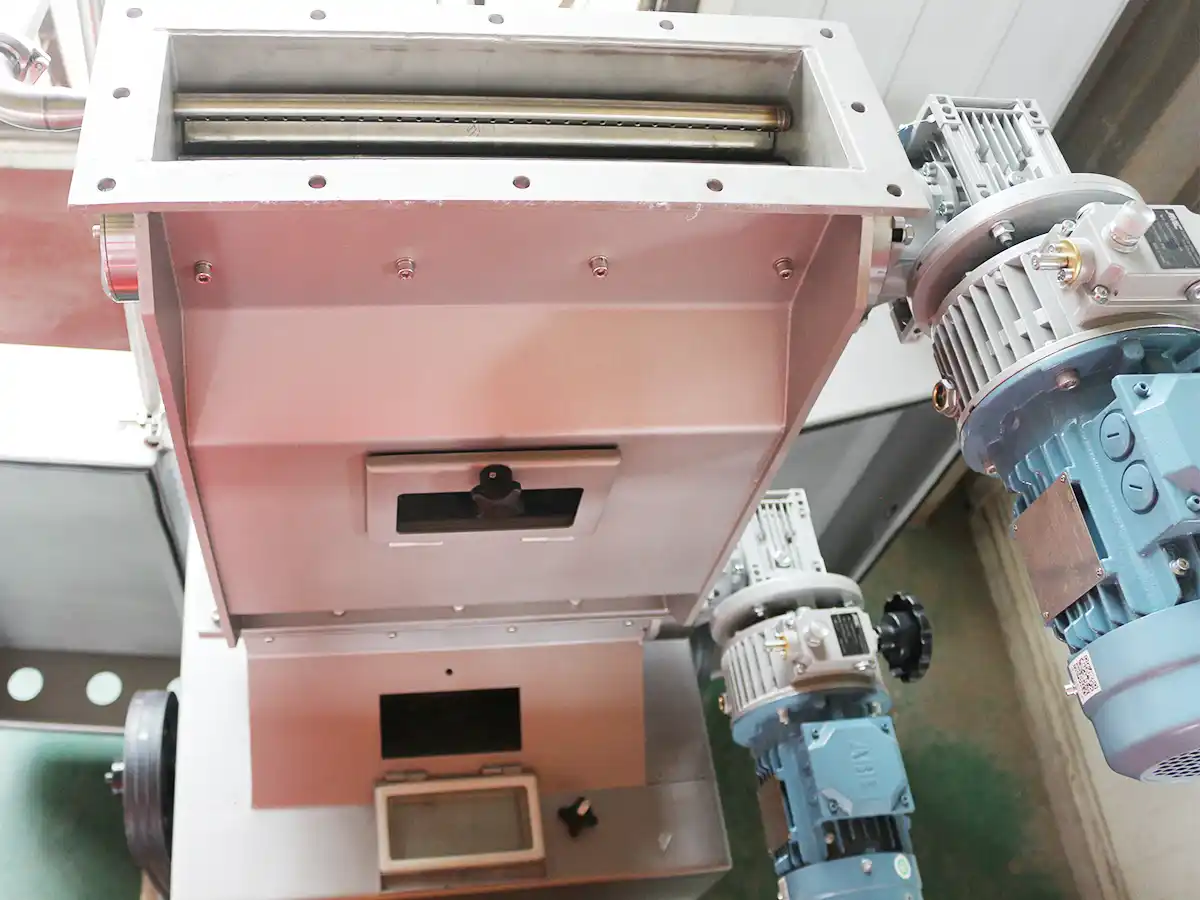

Dual ABB motors for roll pair rotation.

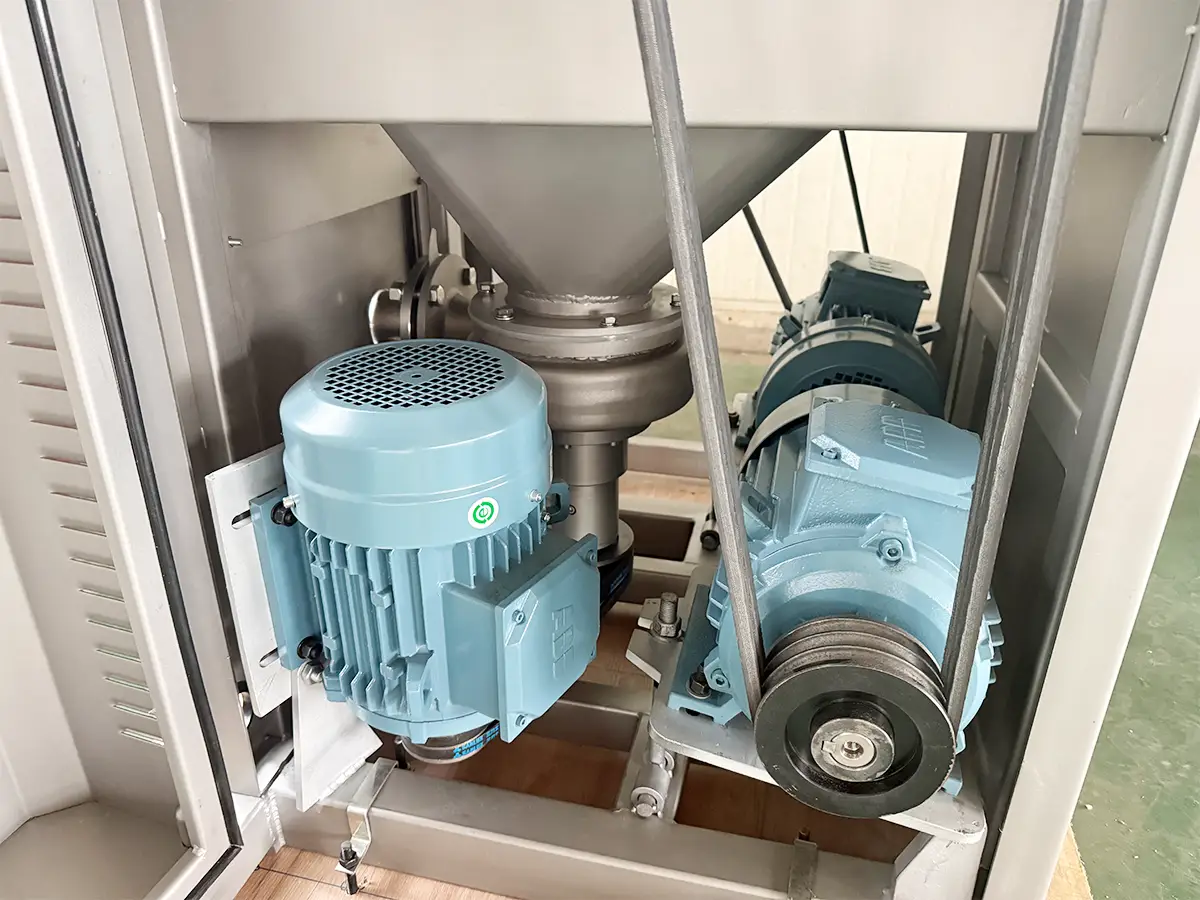

Mash pump fitted with ABB motor.

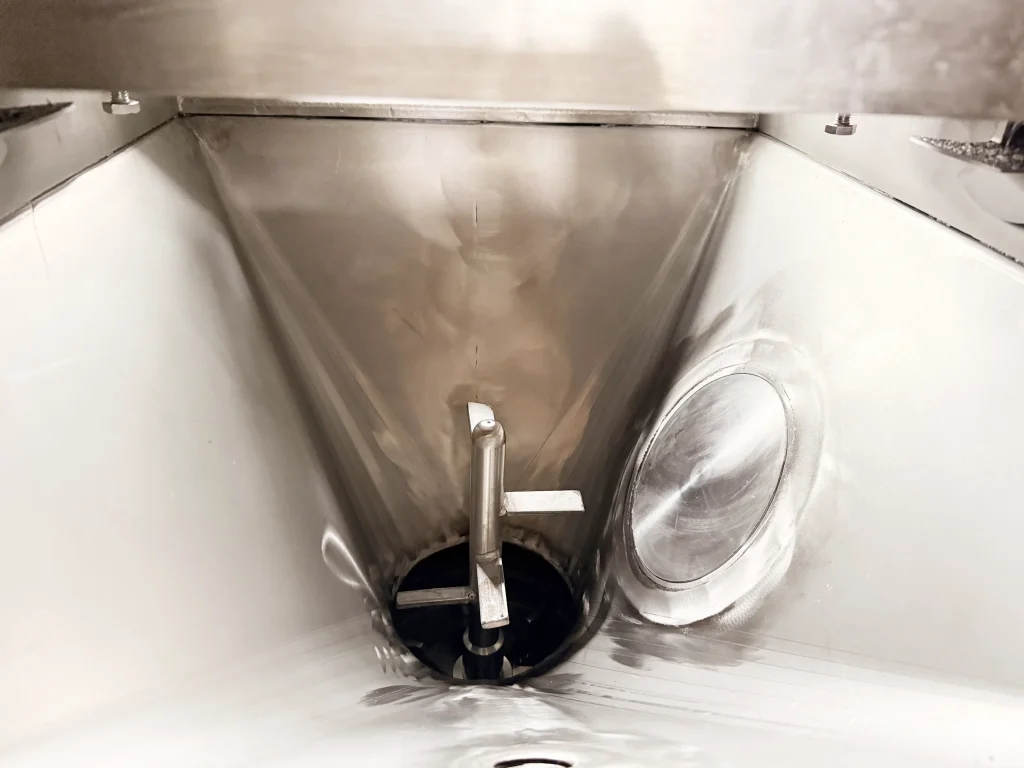

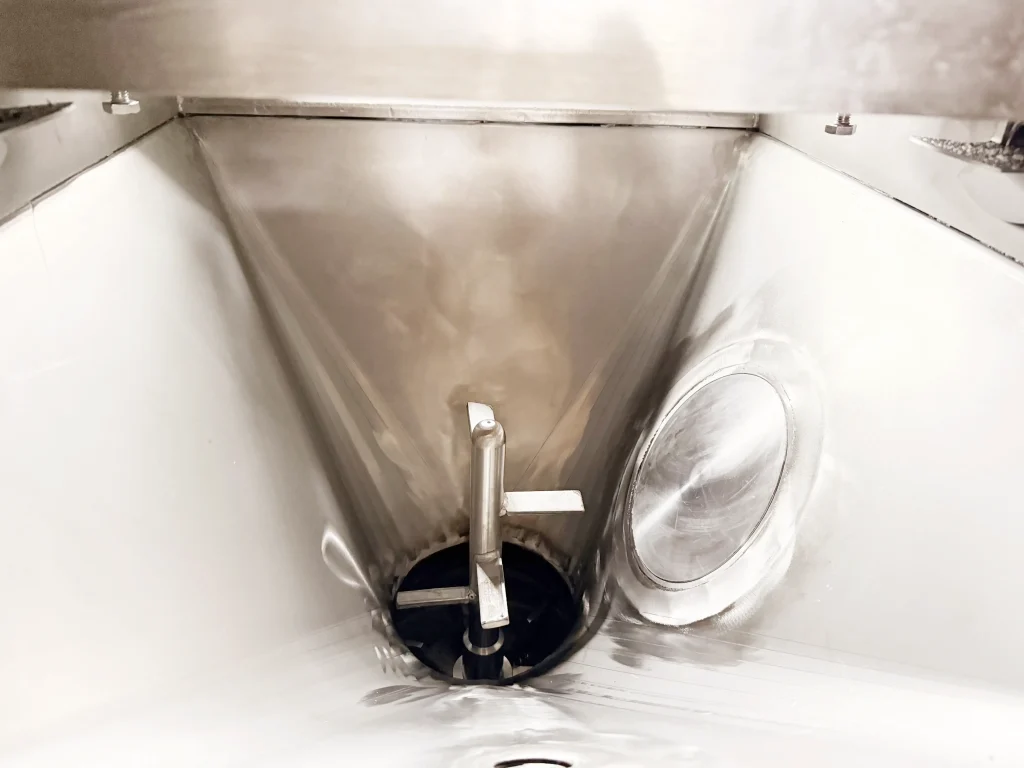

MASH CHAMBER OVERVIEW
- Grist is mixed with brewing water directly below the crushing rollers to ensure mash quality and dusty-free mash production.
- Mash pump guarantees conveyance with low shear forces.
