A well-chosen set of brewery equipment| can turn a modest brewpub into a local legend. Whether you’re starting up in Food Industry Minsk’s vibrant craft beer scene or upgrading an established microbrewery, the right machinery makes all the difference. In this guide, we’ll show you why SKE Equipment’s brewery equipment| stands out, answer common questions, and share practical insights that feel like chatting with a brewing friend rather than reading a manual.
1. The Foundation: Why Brewery Equipment| Matters
Imagine spending weeks perfecting your signature IPA recipe, only to see inconsistent fermentations, off-flavors, and wasted batches. Often, the culprit isn’t the recipe—it’s unreliable brewery equipment|. In Food Industry Minsk, where competition is fierce and margins can be razor-thin, dependable gear isn’t a luxury; it’s a necessity. Investing in top-notch brewery equipment| gives you consistent temperatures, precise controls, and fewer headaches so you spend your time experimenting, not troubleshooting.
2. Breaking Down Essential Brewery Equipment
Mash Tun & Lauter Tun
Your mash tun is where milled grains and hot water combine, triggering enzymes to convert starches into fermentable sugars. A well-designed mash tun ensures even temperature distribution, so every grain contributes flavor. When it’s time to separate sweet wort from spent grains, a lauter tun with a false bottom or adjustable rakes prevents “stuck” grain beds—no more frantic tapping or grain clumps.
With SKE Equipment, both mash and lauter tuns use polished stainless steel and sanitary Tri-Clamp fittings. That means quick disassembly for cleaning, and strict compliance with Food Industry Minsk’s hygiene standards.
Brew Kettle & Whirlpool
Next comes the brew kettle, where wort boils and hops impart bitterness, aroma, and flavor. SKE Equipment’s kettles feature corrugated steam jackets that heat wort up to 20% faster than smooth jackets. Faster boils mean shorter brew days and more batches per month.
After the boil, your wort needs to separate from trub. SKE Equipment’s kettles include integrated whirlpool ports that create a gentle vortex, pushing solids to the center. The clean wort exits the kettle, leaving behind most of the haze and hops residues.
Heat Exchanger
Once you’ve finished your whirlpool, it’s time to chill that hot wort. Rapid chilling prevents bacterial growth and helps achieve better clarity. You can choose from immersion chillers, counterflow chillers, or plate heat exchangers. For busy breweries in Food Industry Minsk, SKE Equipment’s plate exchangers are a popular choice: compact, efficient, and easy to dismantle for cleaning.

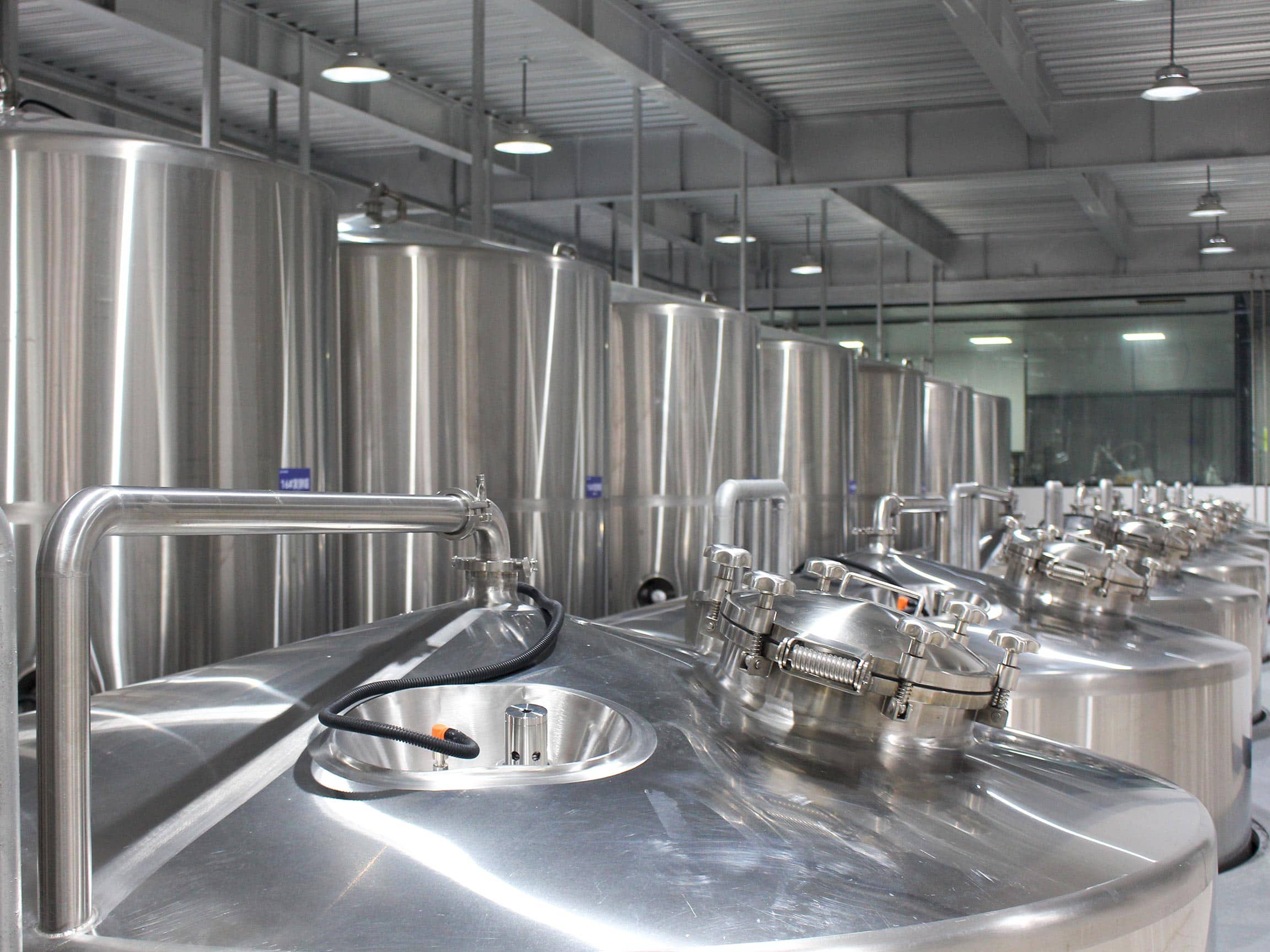

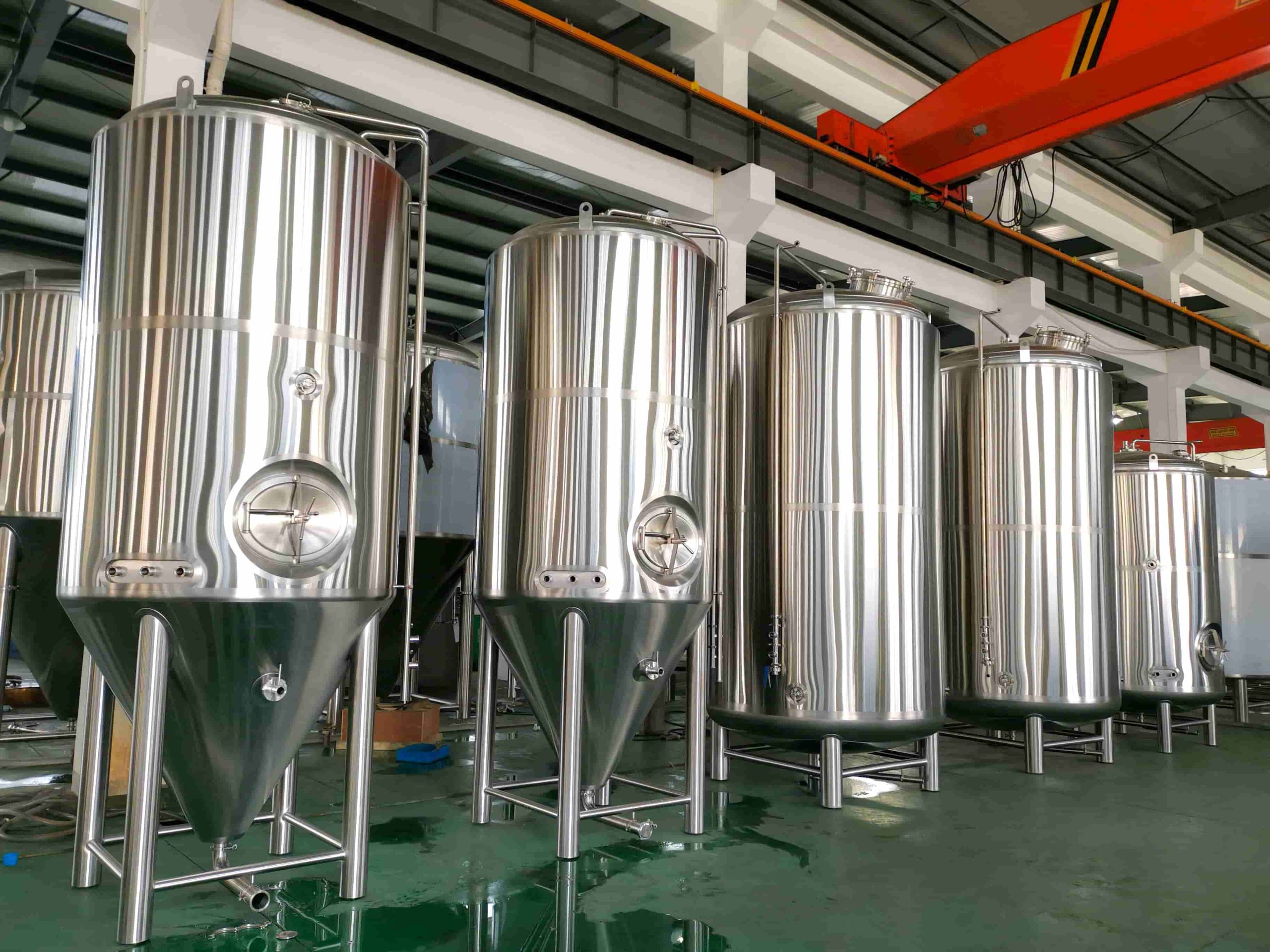

Fermenters & Bright Tanks
Fermentation vessels must maintain precise temperatures to coax yeast into producing the flavors you want. SKE Equipment’s fermenters come with double-jacketed walls that circulate glycol, holding fermentations within ±0.5 °C. That level of control ensures your stout tastes like a stout, batch after batch.
For conditioning, carbonating, and serving, bright tanks are essential. Look for built-in carbonation stones, sampling valves, and pressure relief fittings. SKE Equipment ensures each Bright Beer Tank comes 3A-certified, so it meets strict sanitary regulations.
Automated CIP Systems
Cleaning is often the most labor-intensive part of brewing. Instead of climbing inside tanks with brushes, an automated Clean-In-Place (CIP) skid does the heavy lifting. With preset recipes for caustic, acid, and rinse cycles, an SKE Equipment CIP system cuts cleaning time in half. Sanitary spray balls reach every corner of your vessel, leaving surfaces gleaming and ready for the next batch.
3. 9 Advantages of Choosing SKE Equipment’s Brewery Equipment
Precision Temperature Control
In high-gravity mashes, even a 1 °C variation can alter extraction by 5%. SKE Equipment’s brewery equipment| uses PID controllers that hold mash, boil, and fermentation temperatures within 0.5 °C. That means fewer off-spec batches and more consistent flavor profiles across your lineup.Faster Heating & Cooling
Corrugated steam jackets in kettles and half-pipe jackets in fermenters accelerate heat transfer by up to 30%. Your brew days shrink, giving you more time to experiment with new recipes or serve guests in your taproom without long waits.Energy Savings
Integrated heat recovery loops capture waste heat from the boil to preheat mash water or CIP solutions. Many breweries see a 20–25% drop in utility bills the first year after installing SKE Equipment’s brewery equipment|, freeing up budget for marketing or expansion.Labor Reduction with Automated CIP
Pre-programmed CIP cycles ensure that cleaning solutions reach 75 °C for caustic washes and 60 °C for acid rinses. No more mixing chemicals by hand or scrubbing hard-to-reach corners. Your team can focus on quality control and recipe development.Sanitary Design, Ready for Food Industry Minsk
Every vessel meets 3A, FDA, and CE standards. Polished interiors (Ra ≤ 0.8 µm) and sloped drains eliminate “dead legs” where bacteria can hide. For breweries targeting local craft beer festivals or export, these certifications smooth the path through regulatory inspections.Modular, Scalable Solutions
Start small—a 1 000 L pilot system—and grow to a 10 000 L production line by adding vessels or upgrading components. SKE Equipment’s standardized frames and Tri-Clamp connections let you retrofit or expand without reengineering your entire layout. Scale at your pace, without wasted capital.Remote Monitoring & Support
With integrated IoT sensors, you can track fermentation temperatures, pump statuses, and CIP cycle progress from your phone. If a tank drifts out of range or a valve fails, you get an instant alert. SKE Equipment’s remote support team in Food Industry Minsk can guide you through fixes, minimizing downtime.Durable, Long-Lasting Construction
Laser-welded seams resist mechanical stress and corrosion. SKE Equipment’s 316L stainless steel stands up to harsh CIP chemicals and high-temperature steam, ensuring your brewery equipment| stays operational—and looks pristine—for years. Many customers report a lifetime exceeding a decade with minimal maintenance.Comprehensive After-Sales Service
From initial site assessment to operator training, SKE Equipment’s team supports you every step of the way. Spare parts are stocked regionally—so if you need a pump seal or gasket in Food Industry Minsk, you can get it within 48 hours rather than waiting weeks.
4. Installing & Commissioning Your Brewery Equipment
Even the finest brewery equipment| can underperform if it isn’t set up properly. Here’s how to get your SKE Equipment vessels online smoothly:
Site Preparation
Floor Load Assessment: Confirm your floor can support the combined weight of full tanks. A single 10 000 L fermenter may exceed 20 000 kg when filled—plan accordingly.
Utility Placement: Route steam, glycol, and electrical lines within 1.5 meters of each vessel. Ensure dedicated drains handle CIP wastewater without overflowing.
Work Flow & Access: Leave at least 1 meter of clearance around tanks for maintenance and safety. Overhead cranes or hoists make removing heavy lids or agitators easier.
Mechanical Installation
Level & Anchor: Place vessels on vibration-dampening pads or grout. Secure legs or skirt bases with seismic-rated anchors if local codes require.

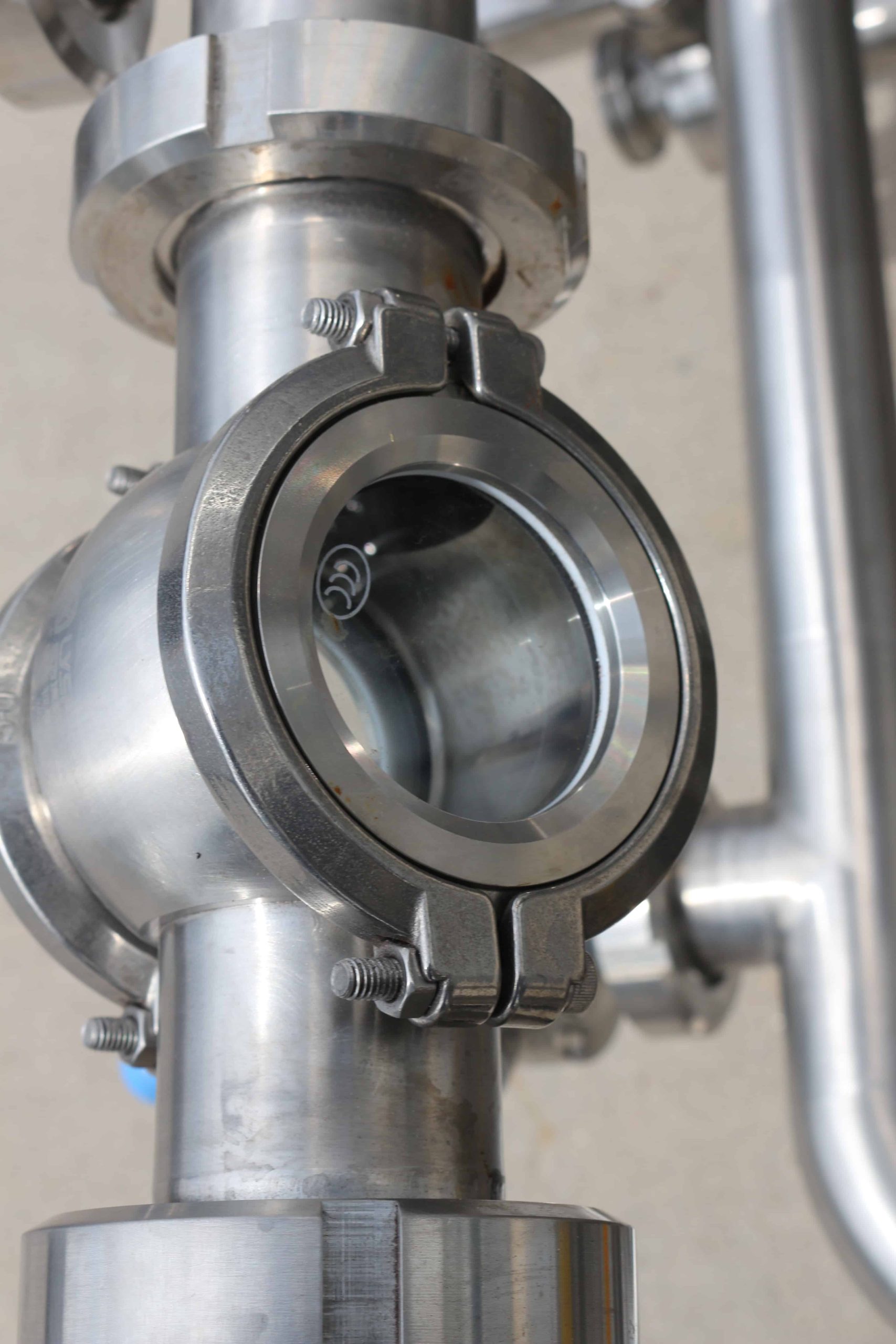

Sanitary Piping: Use Tri-Clamp fittings to connect fermenters, CIP skids, and heat exchangers. Install isolation valves and sample taps to make testing wort or cleaning solutions a breeze.
Agitator Alignment: If your vessels have rakes or mixing arms, verify shaft alignment within 0.5 mm. Proper alignment avoids premature mechanical seal failures.
Instrumentation & Control Hookup
Sensor Placement: Mount RTDs and pressure sensors at each fermenter’s bottom, middle, and top. Wire them back to a central PLC panel, programmed with SKE Equipment’s standard batch recipes.
HMI Configuration: Preload mash schedules, fermentation profiles, and CIP cycles. Lock access levels so operators can run batches but only supervisors can change PID parameters.
Validation & Calibration: Run dry tests—verify CIP pump flow rates exceed 1 m/s, confirm kettle heating curves match spec, and calibrate RTDs at 20 °C, 60 °C, and 100 °C. Pressure-test fermenter jackets to 1.5× design rating (e.g., 12 bar for an 8 bar system).
First Batch Commissioning
Water Test: Fill kettle and fermenter with potable water. Run a full CIP cycle—caustic, rinse, acid, rinse—to check for leaks and proper coverage.
Thermal Cycling: Heat mash water to 65 °C and hold for 30 minutes, then cool to 20 °C. Verify heat exchanger performance matches design specs.
Staff Training: Walk through every HMI screen: start a mash, switch to boil, launch fermentation, and run CIP. Ensure operators know how to respond to alarms and perform emergency shutdowns.
5. Operating & Maintaining Your Brewery Equipment
Even the best brewery equipment| needs routine care to stay reliable. Use these guidelines:
Daily Startup Checks
Visual Inspection: Check all weld seams, valves, and hoses for drips or visible damage. Look for rust or discoloration, especially around welds.
Sensor Spot-Check: Compare fermenter and kettle temperatures against a handheld probe. If readings vary by more than 1 °C, adjust offsets in the HMI.
Valve & Pump Test: Cycle all sanitary valves and run each pump for a few seconds to confirm they’re ready for full production.
Standard Brewing Cycle
Mashing: Heat mash tun to 65 °C. Recirculate wort through a plate exchanger to maintain uniform temperature. Stir gently every 15 minutes to prevent grain clumps.
Lautering: Transfer mash to the lauter tun. Sparge with 78 °C water at a rate of 1 m/s through the manifold to avoid clogs.
Boiling: Boil wort for 60 minutes, adding hops at 60 min (bittering), 15 min (flavor), and 5 min (aroma). Use SKE Equipment’s quick-release hop strainer to remove large particles.
Whirlpool & Cooling: Move wort to the whirlpool vessel, spin for 10 minutes to separate solids, then chill through a 25-plate exchanger down to 18 °C within 15 minutes.
Fermentation: Pitch yeast into a pre-chilled fermenter at 18 °C. Circulate glycol in the vessel jacket to hold temperatures within ±0.5 °C. Monitor gravity daily to gauge fermentation progress.
Cleaning & Sanitation
Automated CIP: After draining, run 2% caustic at 75 °C for 15 minutes, rinse to neutral pH, run 1% acid at 60 °C for 10 minutes, then a final hot water rinse. CIP skid logs every cycle, so you know exactly when and how each tank was cleaned.
Monthly Deep Clean: Remove spray balls, manifold heads, and valve clusters. Scrub with a food-grade passivation agent, inspect for scale or residue, and replace any worn gaskets.
Quarterly Inspection: Pressure-test jackets to 1.5× design pressure. Check glycol concentration (20–30%) and pH (7.0–8.0); replace hoses older than two years.
Preventive Maintenance
Quarterly: Calibrate RTDs at 20 °C, 60 °C, and 100 °C using a certified block calibrator. Test relief valves at 1.2× setpoint to ensure they open reliably.
Semi-Annual: Flush glycol loops and verify pump flow rates ≥ 2 GPM. Check for leaks or air pockets in the jacket lines.
Annual: Recalibrate all sensors and conduct dye-penetrant inspections on weld seams to catch micro-cracks. Update PLC firmware to the latest version for new features and security patches.
Troubleshooting Tips
Inconsistent Fermentation Temps: If your fermenter drifts, bleed air pockets from the jacket lines and confirm glycol pump flow.
Slow Kettle Chill: Make sure your plate exchanger is free of scale—run a 1% acid solution at 40 °C monthly to descale.
Stuck Lauter: If the grain bed clogs, adjust sparge water pH to 5.8–6.0 with lactic acid, and confirm manifold pressure stays at 0.3 bar.
6. Common Questions About Brewery Equipment
Q1: How do I pick a 1 000 L brewery equipment| setup in Food Industry Minsk?
A1: Start by estimating annual output—say 52 000 L per year if you brew 1 000 L weekly. You’ll need a 1 200 L mash/lauter tun, a 1 200 L kettle, and at least two 1 500 L fermenters to rotate quickly. Ensure all vessels have 3A certification, polished internals, and SKE Equipment’s compliance documentation for Food Industry Minsk’s regulations.
Q2: Should I choose steam jackets or electric heating for kettles?
A2:
Steam Jackets heat more uniformly and cradle large volumes effectively—ideal for kettles over 1 000 L. Requires a reliable boiler and steam traps.
Electric Elements are easier to install for smaller systems (<500 L), with precise PID control. In Food Industry Minsk’s colder winters, steam often offers better energy efficiency for larger brewhouses.
Q3: What size CO₂ tank do I need for carbonation?
A3: Calculate total bright tank volume—two 1 500 L tanks at 2.5 volumes of CO₂ each need 7 500 L of CO₂, or ~260 kg in a compressed tank. Opt for a 300 kg cylinder to allow a reserve margin for emergencies.
Q4: Can older vessels be retrofitted with new CIP systems?
A4: In many cases, yes. Provided the interior surface polish is Ra ≤ 0.8 µm, you can add Tri-Clamp spray balls, new valve clusters, and automated CIP skids. SKE Equipment’s retrofit kits fit standard 2″ or 3″ ports, giving older tanks a modern cleaning capability.
Q5: How many fermenters do I need for 50 000 L per year?
A5: If you run 1 000 L batches and fermentation takes ~10 days, you’ll cycle about 50 batches a year. With two 1 500 L fermenters, you can stagger fermentations—one tank cooling or cleaning while the other is active, enabling a steady production flow.
