X-ray weld inspection isn’t just another checkbox on your quality plan—it’s the X-ray vision that reveals hidden flaws and ensures your structures never fail. Have you ever wondered why critical components—from pressure vessels to pipeline joints—undergo rigorous X-ray weld inspection rather than surface checks? Today, we’ll dive into five compelling reasons why SKE’s X-ray weld inspection solutions lead the industry, walk through the exact inspection steps, highlight key precautions, and address the top concerns you’ll have as a customer.
Why X-Ray Weld Inspection Matters
Detect Internal Defects Beyond the Surface
Ordinary NDT methods like dye penetrant or magnetic particle testing catch only surface cracks. X-ray weld inspection penetrates deep into the metal, unveiling porosity, slag inclusion, lack of fusion, and internal cracks up to 150 mm thick. SKE’s high-power X-ray generators deliver consistent beam quality, ensuring even dense materials are rendered in sharp detail.
Quantifiable, Permanent Records

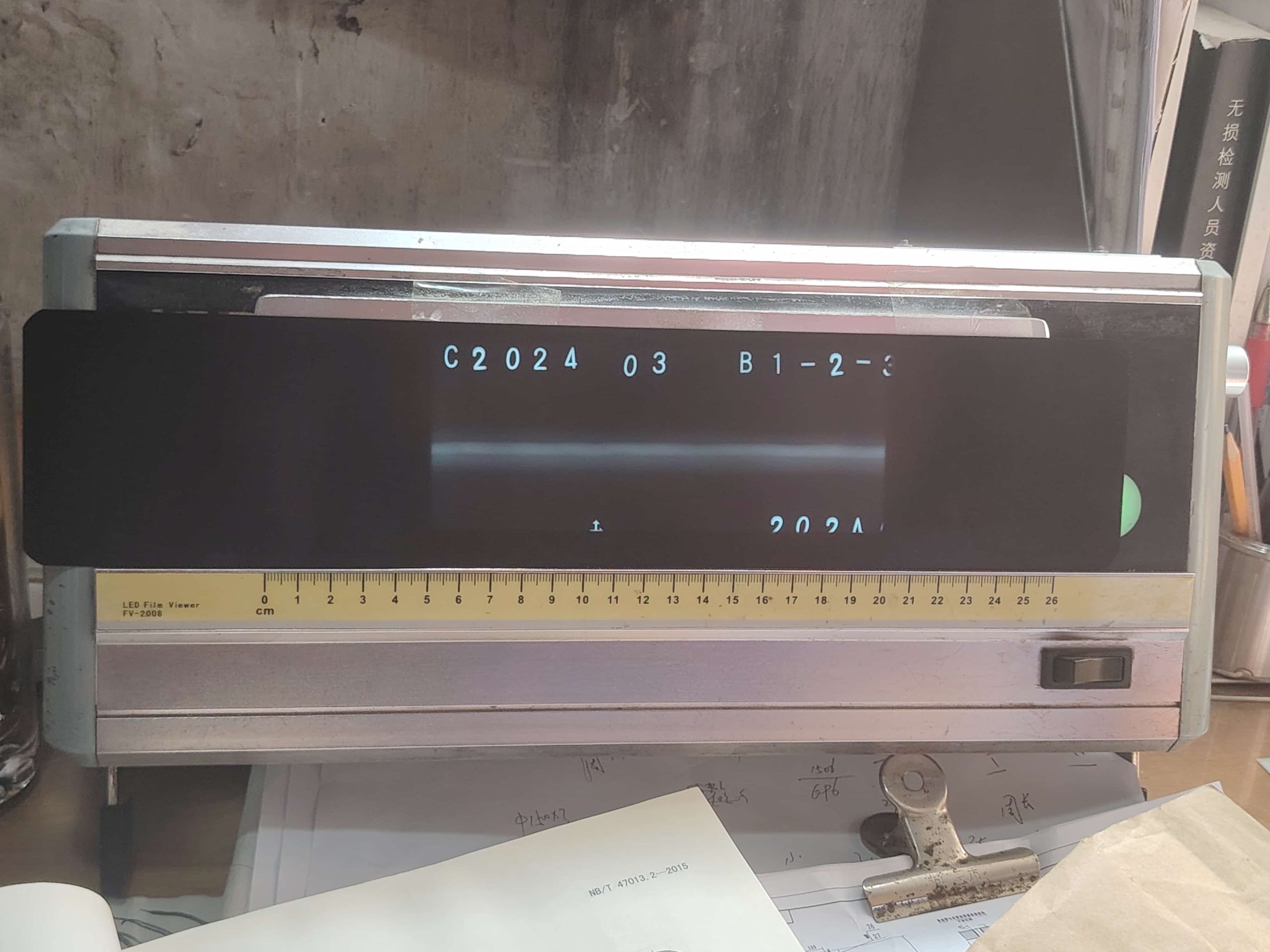

An X-ray radiograph is a lasting grayscale map of your weld’s internal structure. SKE’s digital detectors produce high-resolution images you can measure to 0.1 mm accuracy. Those DICONDE-compliant files become part of your audit trail, proving compliance with ASME, ISO 17636-2, and customer specifications.
Minimize Downtime and Rework
Catching flaws early saves massive costs. SKE’s rapid X-ray workflows inspect multiple welds in minutes—up to 40% faster than ultrasonic scanning—so you avoid costly shutdowns. Early detection means you fix small defects before they become catastrophic leaks or failures.
Ensure Safety & Regulatory Compliance

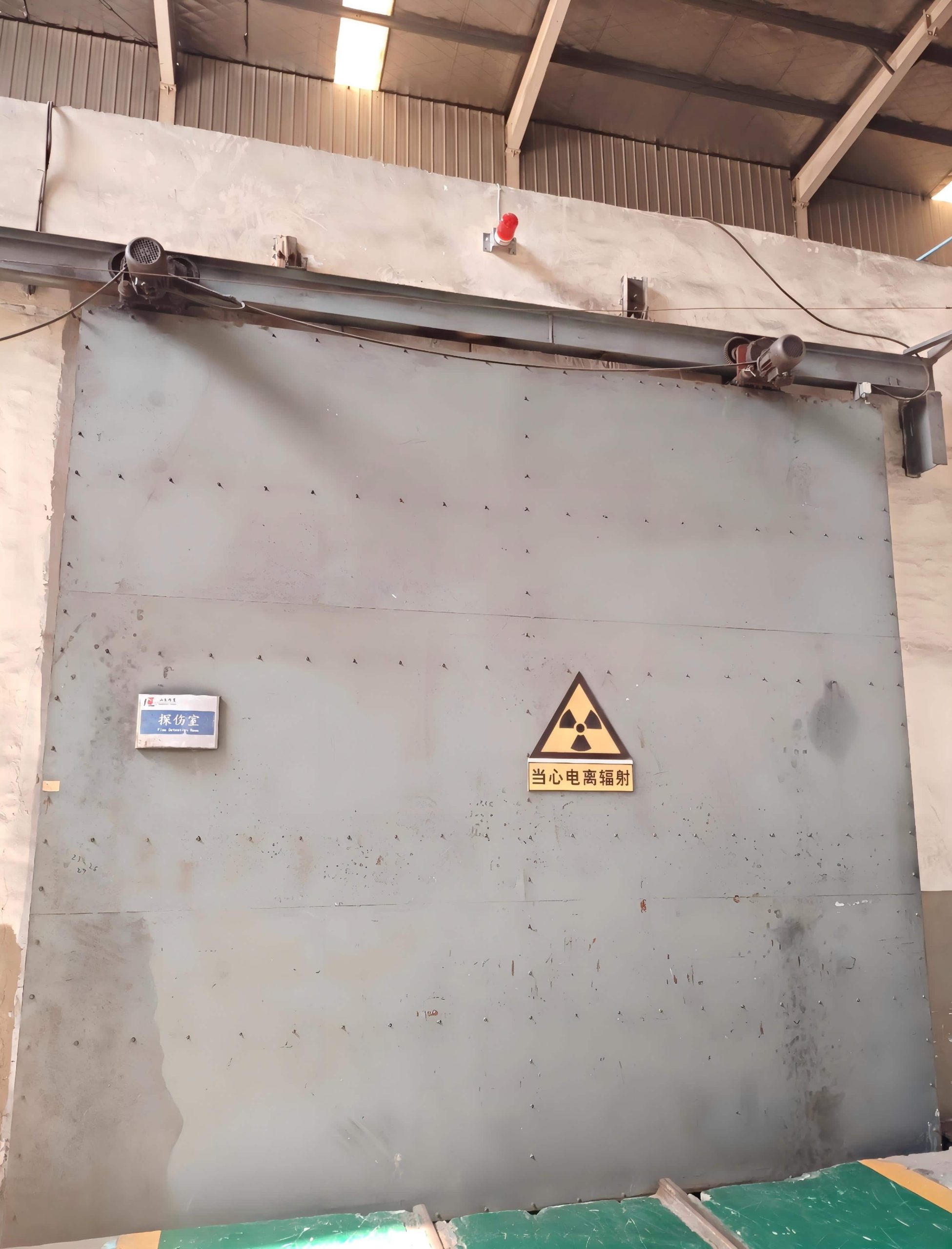

Industries such as oil & gas, aerospace, and nuclear mandate X-ray inspections. SKE’s turnkey radiography booths include lead shielding, interlocked doors, and real-time dosimetry, creating an audit-ready environment that satisfies OSHA, EU IRR 2017, and local regulatory bodies.
Versatility Across Materials & Geometries
Whether you’re working with stainless steel brewing equipment or high-strength pipeline alloy, X-ray weld inspection adapts. SKE’s adjustable kilovolt settings and filtration options let you optimize penetration for any thickness or complex joint geometry—no special consumables required.
The X-Ray Weld Inspection Process: Step by Step
Preparation & Setup
Clean the weld area to remove slag or coatings.

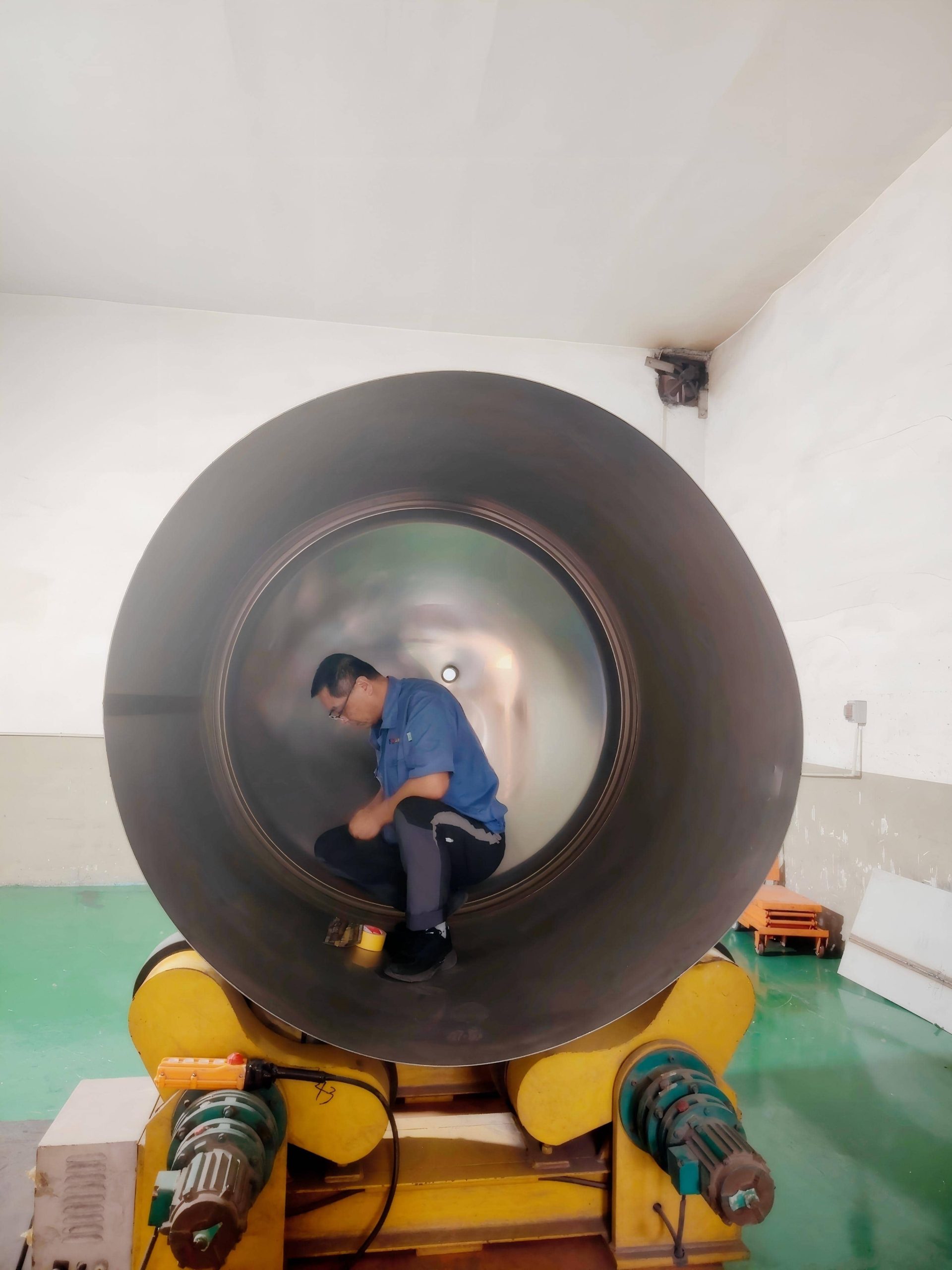

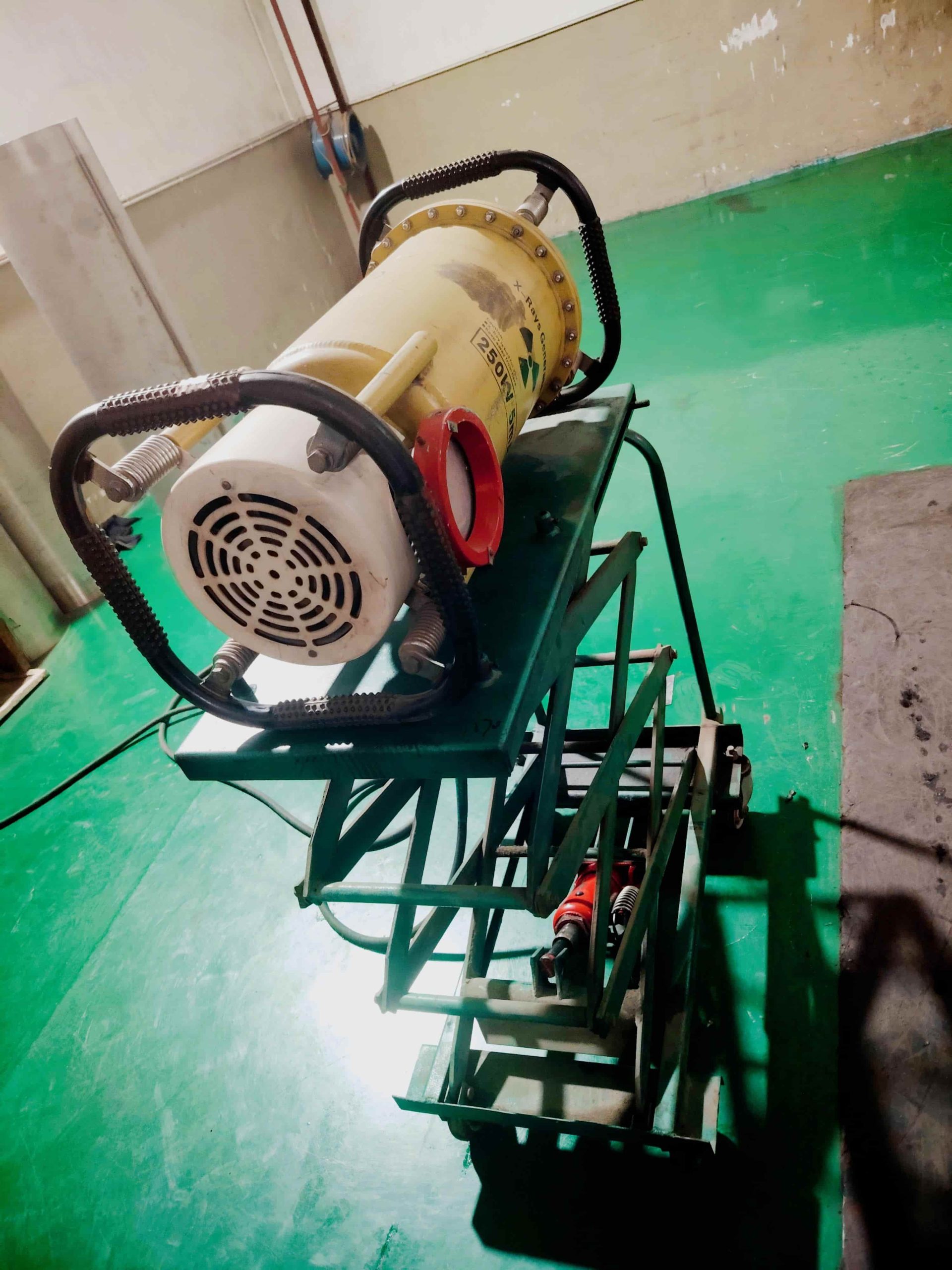

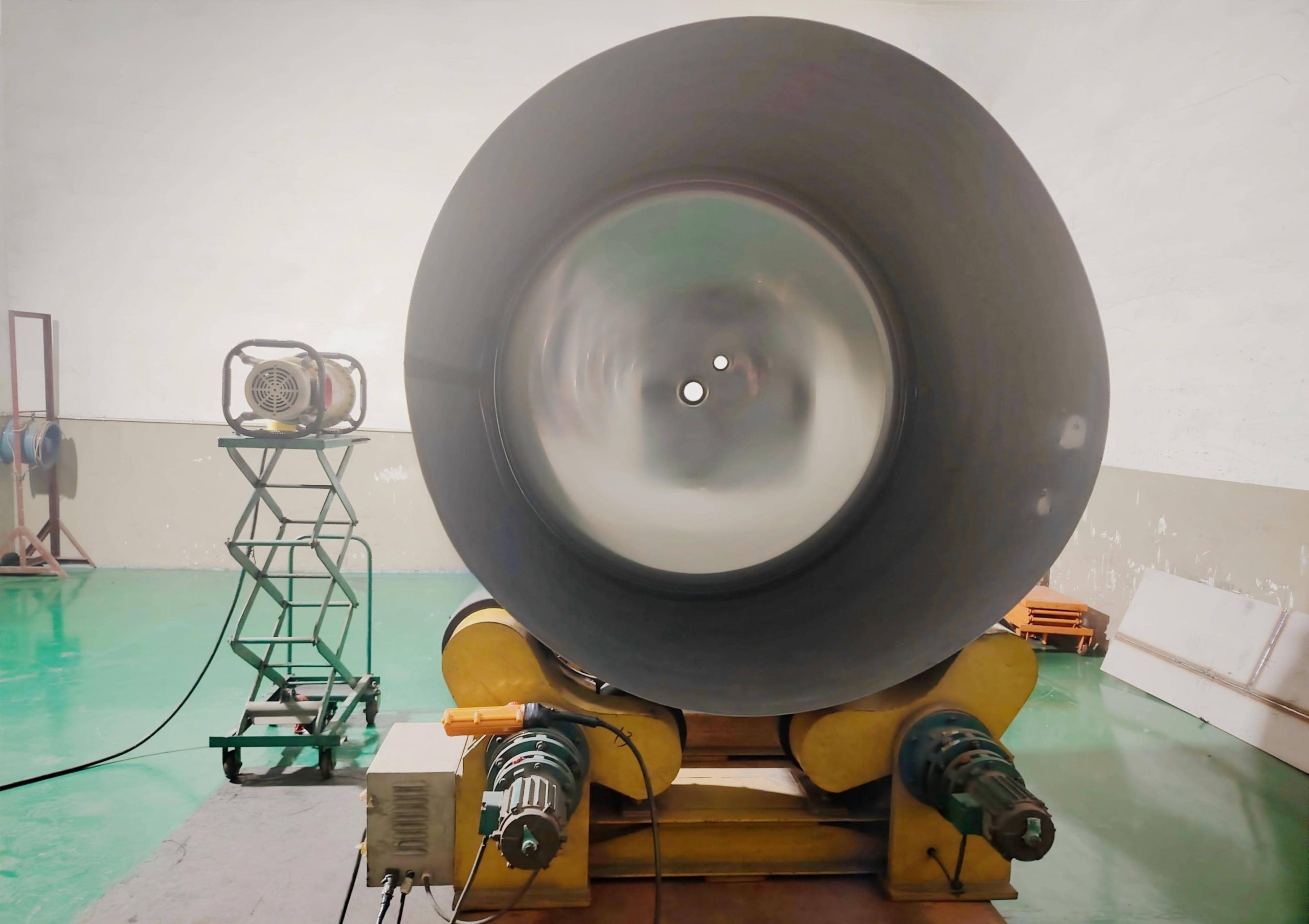

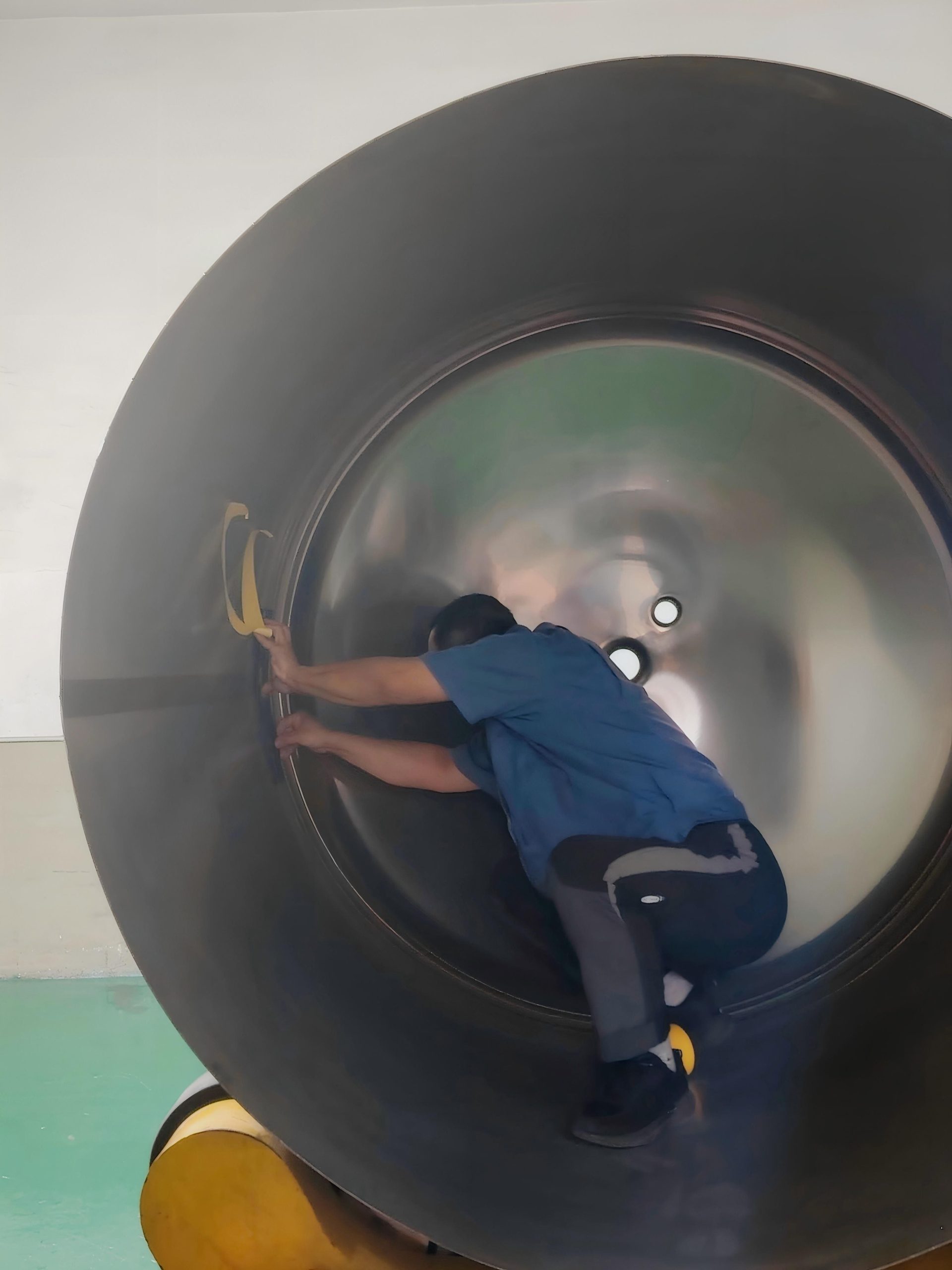

Position SKE’s X-ray source and digital detector opposite the weld.
Mount alignment jigs or stepladders to maintain precise geometry and focus.
Calibration

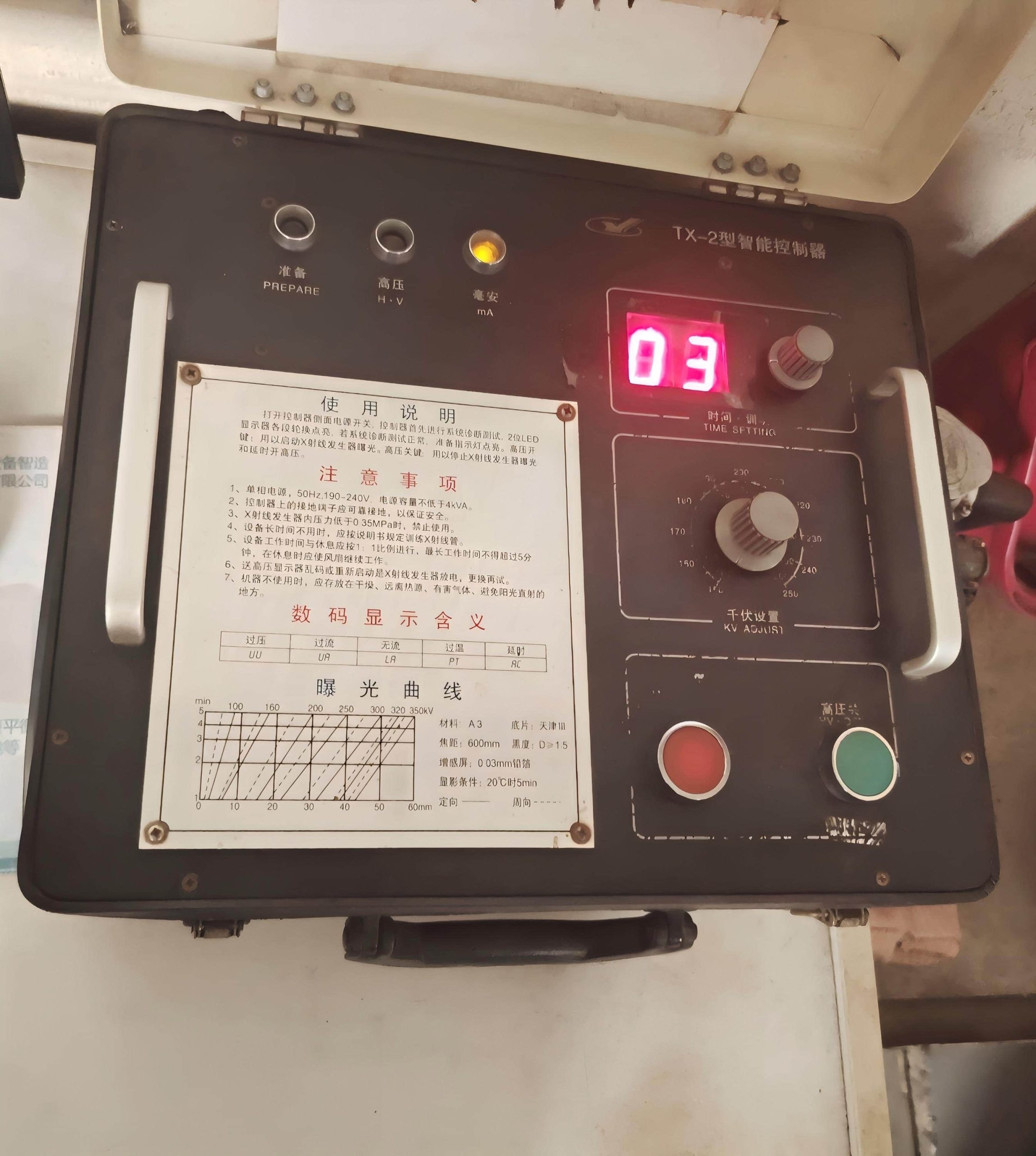

Use a certified step wedge or IQI (Image Quality Indicator) to set exposure factors (kV, mA, and distance).
Verify beam alignment and density range on a test coupon.
Exposure
Initiate the X-ray weld inspection exposure, monitoring shot time and dosage.
Ensure the part remains static; any movement blurs the image.
Image Acquisition & Immediate Review
Capture digital radiographs, then preview on SKE’s integrated workstation.
Check for under- or over-exposure; repeat the shot if necessary.
Image Processing & Analysis
Apply contrast enhancements and edge-detection filters.
Annotate defects—porosity, inclusions, cracks—measuring size and location against acceptance limits.
Reporting & Archival
Generate DICONDE-format reports with embedded exposure logs, defect maps, and calibration certificates.
Archive files in your quality management system for traceability and audits.
Key Precautions During X-Ray Weld Inspection

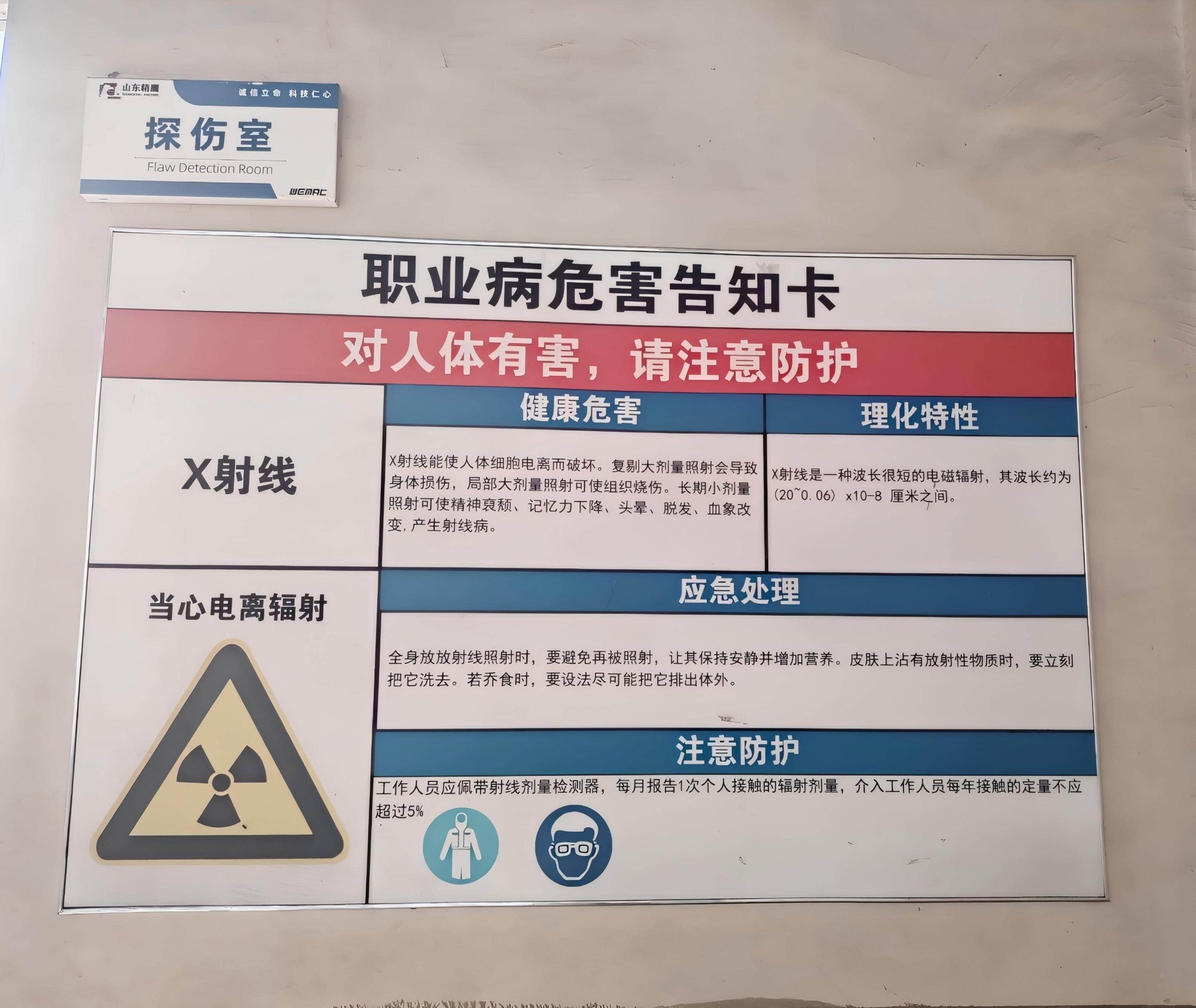

Radiation Safety: Always use interlocked barriers and personal dosimeters. Ensure operators never enter the beam path during exposure.
Fixture Stability: Secure both source and detector to prevent vibration or drift; even a millimeter shift can obscure micro-defects.
Environmental Controls: Maintain consistent temperature and humidity; extreme fluctuations can affect detector performance.
Surface Cleanliness: Any surface coating—paint, scale—can absorb beam energy and mask subsurface flaws.
Proper Training: Certification to Level II or III per SNT-TC-1A ensures your team understands exposure parameters and defect interpretation.
Customer Concerns & How SKE Addresses Them
“How thick can we inspect?” SKE systems penetrate up to 150 mm of steel; for thicker sections, we offer dual-energy and gamma-ray options.
“What about image turnaround?” With digital detectors, you get inspectable images in seconds—no darkroom delays.
“Can we integrate with our QA software?” Yes. SKE’s solution exports DICONDE files compatible with all major QA platforms, ensuring seamless data flow.
“What’s the ROI?” Faster inspections, fewer reworks, and regulatory compliance translate to payback in as little as 12 months, as our clients consistently report.
Surprise Finale:
You’ve learned why X-ray weld inspection is indispensable—now experience it live. Book a free demo of SKE’s mobile X-ray unit, complete with digital detector and AI-powered analysis, and see real-time defect detection on your own weld samples. Elevate your quality program overnight.
FAQs
Q1: How often should we recalibrate our X-ray system?
Monthly calibration with a certified step wedge maintains density accuracy within ±0.1 mm Al equivalence.
Q2: Is digital radiography safe for confined spaces?
Yes—our mobile units use shielded housings and remote-control panels to keep operators out of high-radiation zones.
Q3: Can X-ray detect flaws in exotic alloys?
Absolutely. SKE’s adjustable kV settings and filtration easily adapt to high-density alloys like Inconel or duplex stainless.
Q4: How long do digital radiographs remain legible?
DICONDE-formatted files ensure readability for decades, satisfying even the strictest archival requirements.
Ready to guarantee flawless welds?
Whether you’re inspecting pressure vessels, pipeline joints, or critical aerospace components, SKE’s X-ray weld inspection solutions give you the confidence of zero surprises. Contact us today to schedule your demo and lock down quality like never before.
