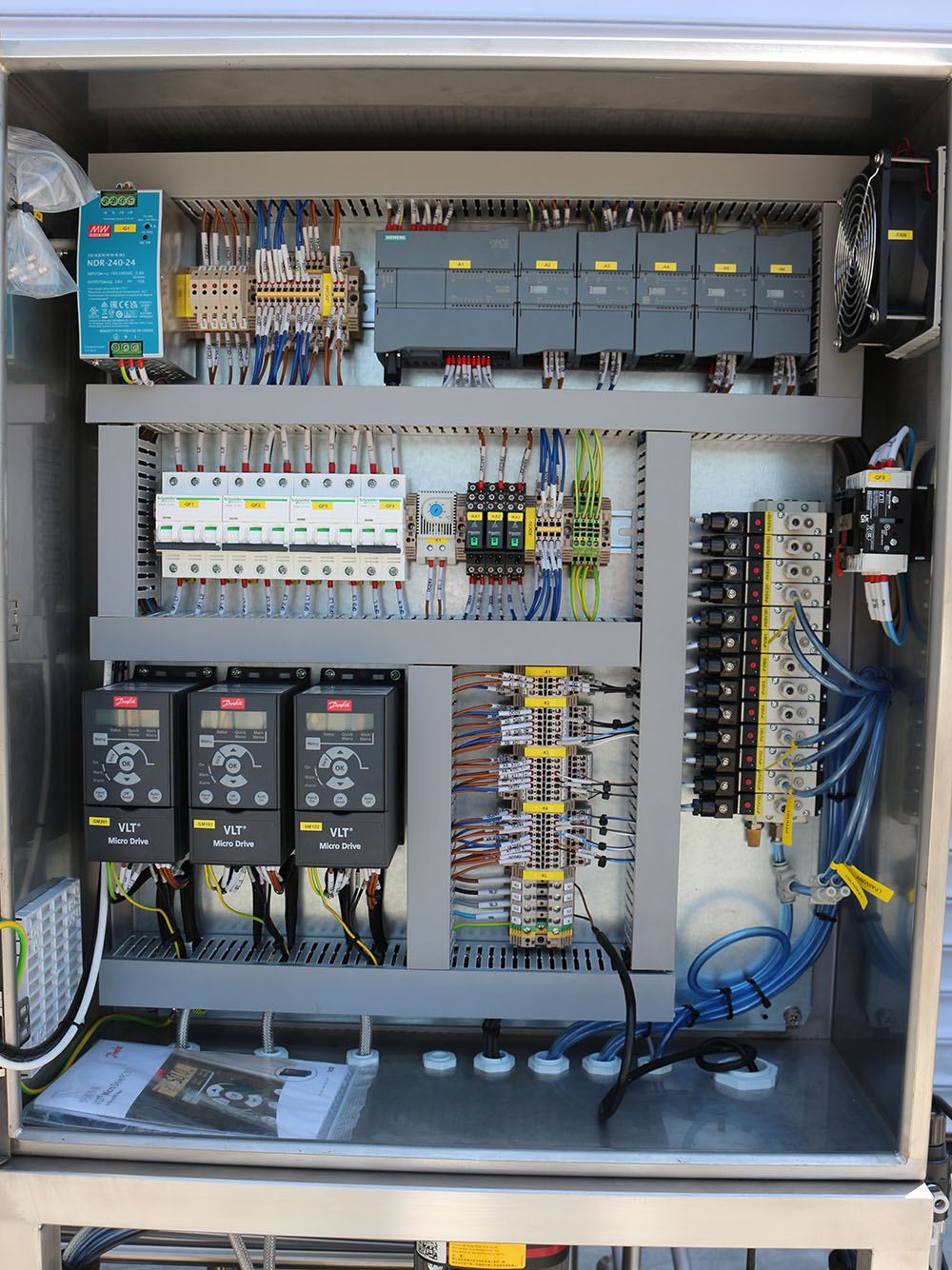

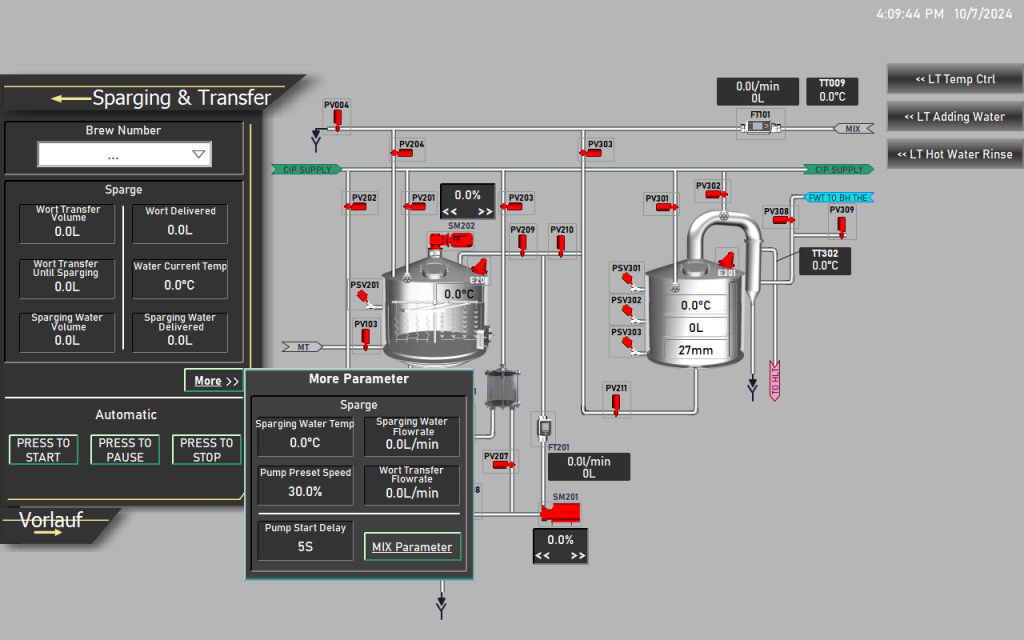

Cotrol System
Highly tailored programs for each individual brewhouse to meet diverse brewing process requirement for different beer.
Senior Brewhouse Auto Function
Material Flow Control

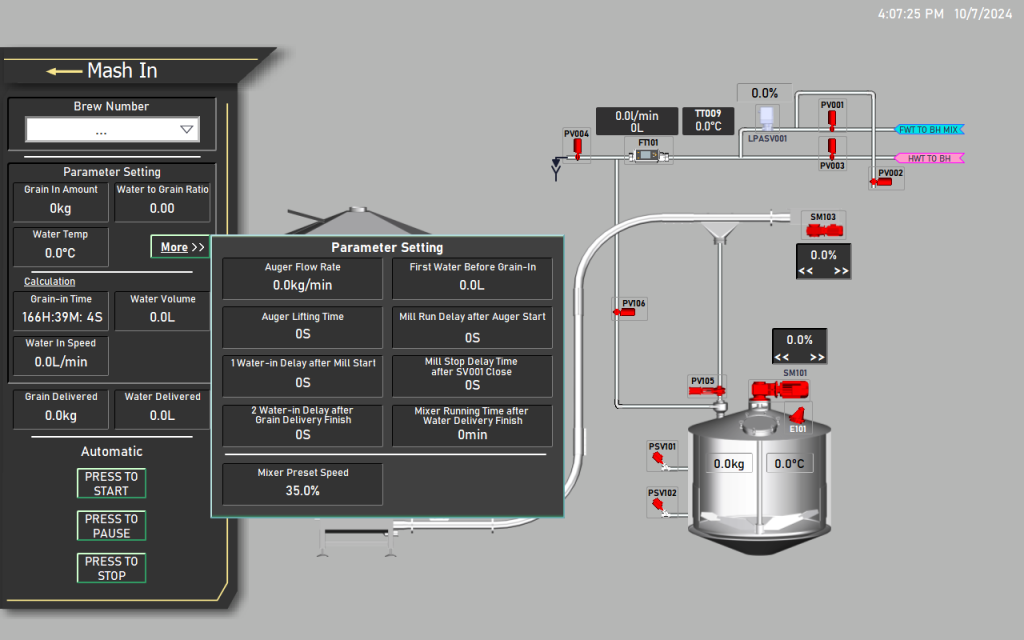

- Mash Flow Auto Control
- Wort Flow Auto Control
- Water Flow Auto Control
- Draining Auto Control

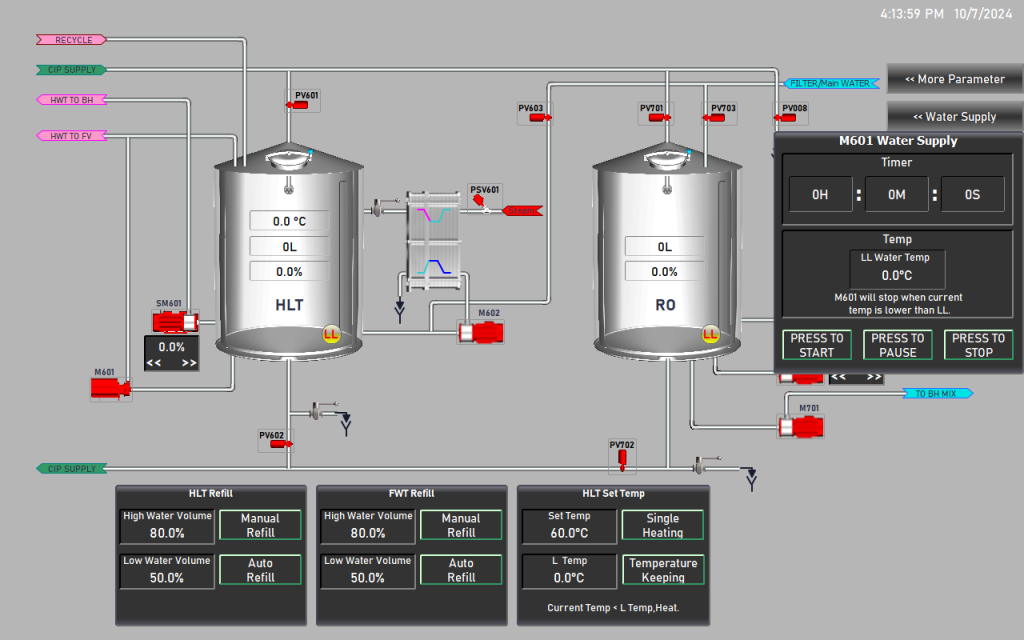

- HLT auto Supply Function for Needed Area By Pressure Switch
Temperature Auto- Control & Display
- All tank Temperature Display
- Mash,Brew Kettle, HLT, CLT Temperature Auto Control
- Water Mixing Station Temperature Auto Control

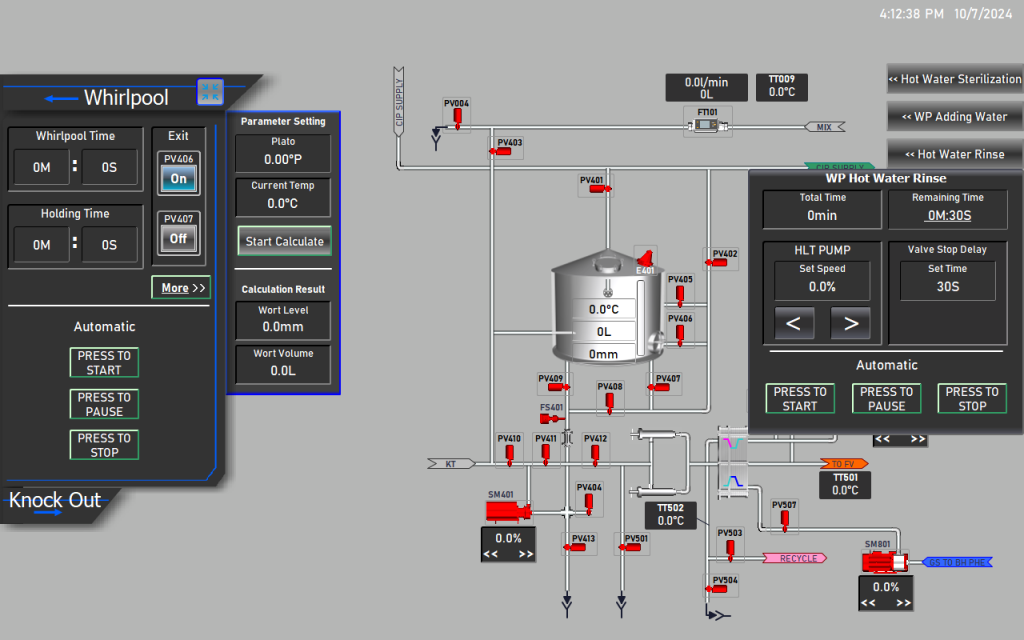

- Wort Temperature after PHX(knock-out temperature) Auto Control
- MT Upper and Lower Dimple Jacket Heating Individual Control for Half Batch Brewing.
- Boil Kettle Boiling Intensity Auto Control by SpiraxSarco P&ID Regulation Valve
Volume Recording And Auto Control
- Grist Volume Display & Auto Control By Weighing Module.
- Water Mixing Station with IFM Flow Meter for measuring/auto-control filling volume for MT & LT water filling & sparge water filling
- IFM flowmeter between LT and KWT to measure and record wort flow between LT and KT during volarf and run-off.
- Brew Kettel& Whirpool Tank &HLT&CLT Volume Display & Auto Control By Pressure Transmitter

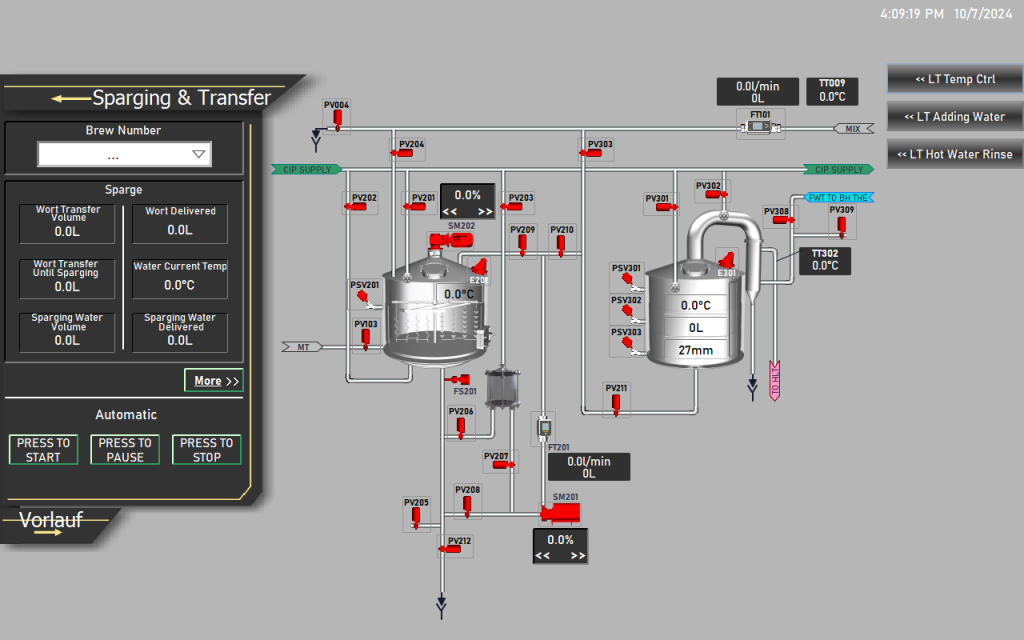

- Wort Grant Volume /Wort Flow Rate Control during Volarf &Run-off by Pneumatic Regulation valve and level sensor on wort grant as well as lauter pump auto control.
- Lauter Tank Upper and Lower pressure detect by two Pressure Transmitter and raking auto-start to avoid layer collapse
Motor Speed Control
- Lauter pump speed (Lauter&Varlarting Speed) Auto Control
- All Pump On/Off and speed control with VFD by programming setting
- Mill& Chain Conveyor Motor On/Off Auto-Control and Speed Control by VFD by programming setting
- Raking Machine On/Off Auto-Control and Speed control by VFD during mashing/lautering by programming setting

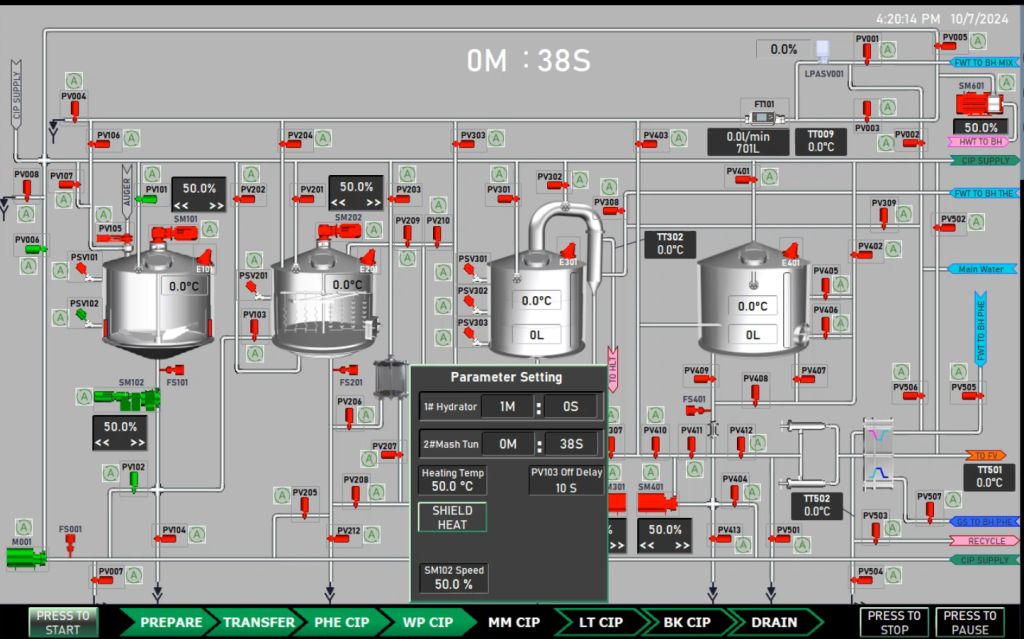

Brewhouse Self-Cip Function (Auto Control )n
Alarm& Lighting Control
- Emergency Stop on brewhouse cabin and MMT
- Tank lights ON/OFF
- Over-Boiling Protection on KT
- Mash & Kettle & Whirlpool & CIP Pumps idling protection by IFM flow-switch
- Water Pumps idling protection by IFM Level Sensor
- Compressor-Air for Brewhouse Low-Pressure Protection/Alarm
- Alarm buzzer function
Other Function Introduction

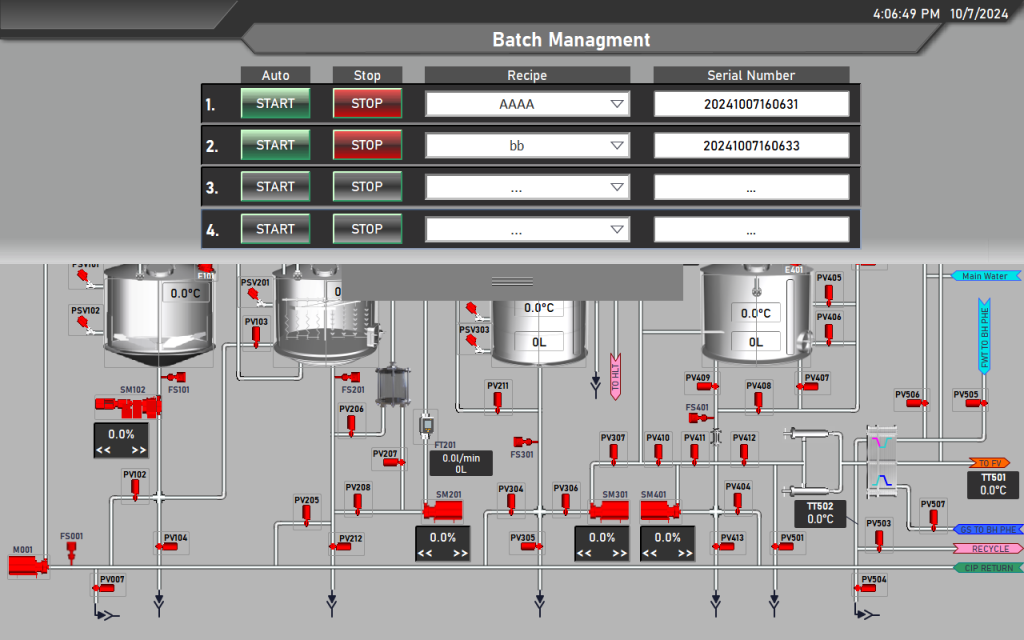

- Recipe Setting for brewhouse and cellar tanks
- Remote Prompt Programming Trouble-Shooting and Upgrading anytime.
