SKE Equipment

automatic keg washer

SKE Keg Washer

SKE Keg Washer is highly efficient and easy to use, designed specifically for craft breweries. It operates automatically — brewers simply load the kegs onto the table, and the rest of the process is completed via pre-set programs. No manual connection is required — the new automatic connector securely locks the keg spear in place. It features two independently operated cleaning stations. Each cleaning cycle incorporates high and low-pressure pulsed valves, enabling thorough, efficient cleaning of the keg stem.

Keg-Washer Spec

  • Material, Stainless Steel 304
  • Dimension, 1320mm x 760mm x 1640mm
  • Weight, Approx 200kg
  • Capacity,Approx 30~40kegs/Hour
  • Total Power, 8Kw for electronic heating model , 2.2Kw for steam heating model
  • Heating Method, Steam or Electronic
  • Tanks Info, Two 70L Stainless Steel Rectangular tanks
  • Pumps, Two Centrifuge Cleaning Pumps
  • Valves Style, Automatic Valves (Pneumatic & Solenoid)
  • Keg Type , 10~60L Euro/US Standard
  • Spear, Customize
  • PLC , Siemens
  • Certification, CE/UL/CUL
best keg washer

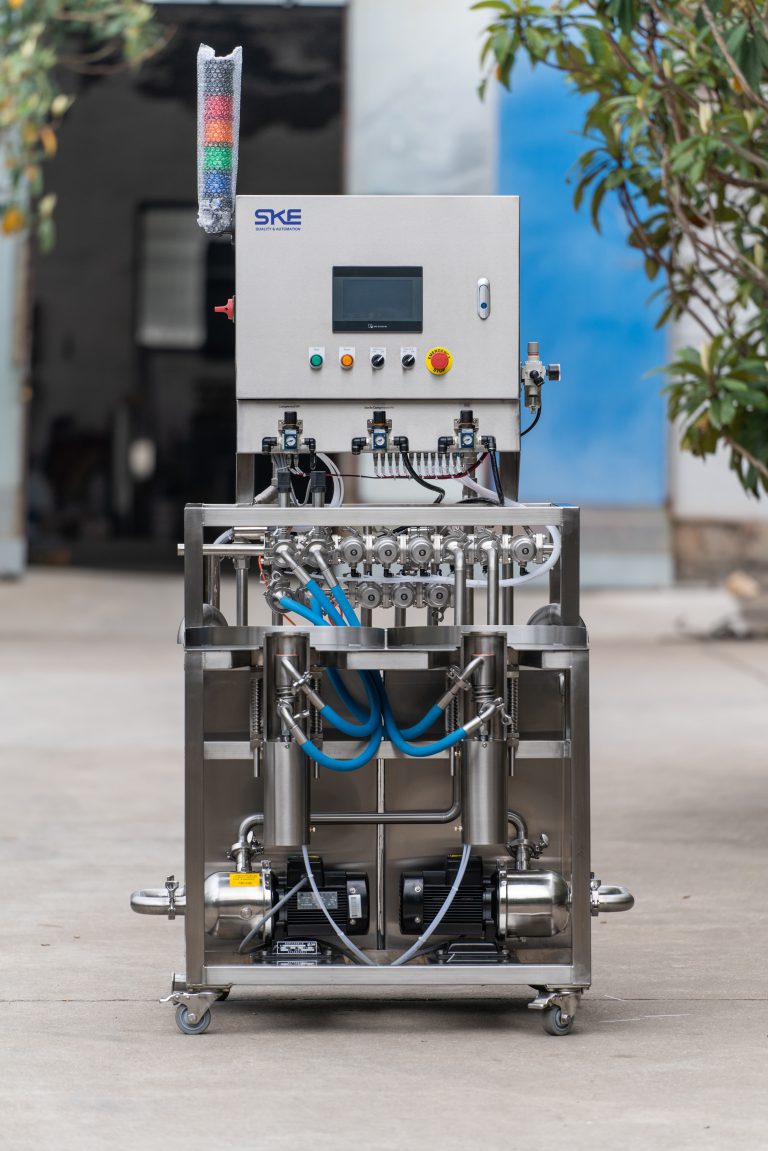

SKE-KW-Ⅱ | Nano & Microbrewery Keg Washer

Resources Connections and Spec

Pressure Table | SKE-KW-Ⅱ

Working Process

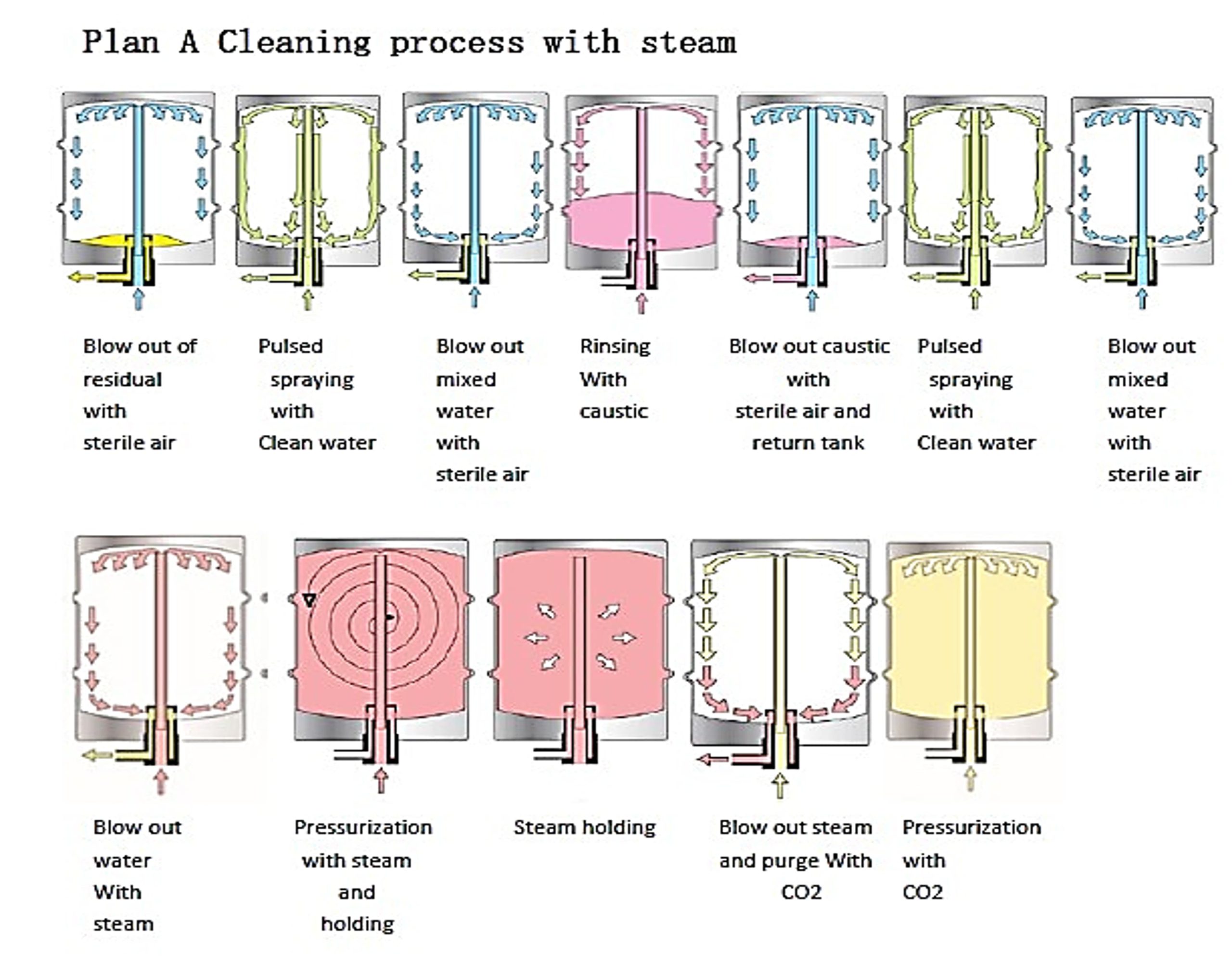

SKE-KW-Ⅱ | Plan A cleaning process with steam
SKE-KW-Ⅱ | Plan B cleaning process with sanitizer
