1. Is Your Fluid Transfer Process a Bottleneck?
In today’s demanding industrial environment, fluid transfer is often the hidden culprit behind quality failures and production delays. Are you facing any of these challenges?
-
Contamination Risks: Rust particles from aging equipment ruining entire batches—especially catastrophic in food and pharmaceutical applications.
-
Inflexible Layouts: Fixed pump stations that can’t adapt to multiple production lines, forcing operators to drag heavy hoses across the plant floor.
-
Cleaning Nightmares: Hard-to-reach crevices that harbor bacteria, leading to failed audits and costly rework.

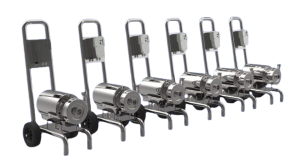

This is where a purpose-built Stainless Steel Pump Cart transforms the game. Far more than a pump on wheels, a stainless steel pump cart is an integrated, mobile skid that combines pump, motor, and controls on a robust, sanitary frame. It offers true “plug-and-play” flexibility. For plant managers and process engineers pursuing FDA, 3A, or GMP compliance, the stainless steel pump cart is not an expense—it’s a strategic investment in both product purity and operational agility.
2. Why Stainless Steel? It’s Not Just Material—It’s ROI
A common question: “Why stainless steel when painted carbon steel is cheaper?” The answer lies in Total Cost of Ownership (TCO) —and it’s precisely why a stainless steel pump cart outperforms alternatives in every critical metric.
| Property | Direct Business Benefit |
|---|---|
| Superior Corrosion Resistance | The passive layer on 304/316L stainless steel is self-healing. This means zero rust contamination (no metal particles in your product) and resistance to aggressive CIP chemicals. Result: asset lifespan of 10+ years, even in harsh environments. |
| Hygienic, Easy-to-Clean Surface | The non-porous, smooth finish (Ra < 0.8µm) prevents biofilm formation. This translates to up to 50% less cleaning validation time and drastically simplified regulatory audits—a key advantage of any sanitary stainless steel pump cart. |
| Exceptional Durability | Withstands high-pressure washdowns, impacts, and thermal shocks without deforming or flaking. While painted carts often need replacement every 3-5 years, a stainless steel pump cart is a generational asset. |
| Sustainable & ESG-Ready | Stainless steel is 100% recyclable. Choosing a stainless steel pump cart supports your company’s environmental, social, and governance (ESG) commitments. |
3. Core Applications: One Stainless Steel Pump Cart, Multiple Production Lines
The true power of a stainless steel pump cart lies in its versatility. A single well-configured cart can serve multiple workstations, eliminating the need for dedicated fixed pumps on every line.
-
Food & Beverage: Sanitary transfer of high-sugar syrups, edible oils, dairy, fruit juices, and viscous batters—without shear damage or separation. A stainless steel pump cart ensures product integrity from tank to filler.
-
Pharmaceutical & Biotech: Aseptic delivery of buffers, cell culture media, and APIs in cleanroom environments, meeting strict sterile processing requirements. The cleanability of a stainless steel pump cart is non-negotiable here.
-
Chemical Processing: Safe handling of aggressive solvents, acids, and caustics, with zero leakage risk to protect operators and the environment. The corrosion resistance of your stainless steel pump cart is your first line of defense.
-
Breweries & Distilleries: Use a single stainless steel pump cart for both hot wort transfer and cold-side dry-hopping, drastically reducing capital expenditure on complex fixed piping.
Engineering Insight: When designing new production lines, consider replacing complex, hard-piped networks with mobile stainless steel pump carts. Fewer welded joints mean fewer potential leak points—and your layout gains immense future flexibility.
4. Essential Design Features of a High-Performance Stainless Steel Pump Cart
Not every “pump on wheels” delivers real efficiency. A truly reliable stainless steel pump cart must incorporate these critical design elements:
-

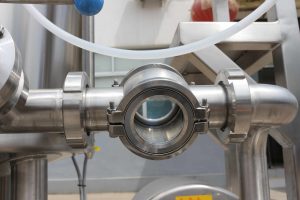

Optimized Pump Integration: Configurable with centrifugal, positive displacement (lobe, progressive cavity), or peristaltic pumps, precisely matched to your fluid’s viscosity, shear sensitivity, and flow/pressure requirements. All product-contact connections feature sanitary Tri-Clamp fittings for tool-free disassembly—a hallmark of a well-engineered stainless steel pump cart.
-
Heavy-Duty Mobility: The frame features continuous, polished welds to eliminate bacterial harborage points. Industrial-grade ≥6-inch swivel casters with locking brakes ensure easy maneuverability even on uneven floors, with stable parking during operation.
-
Intelligent Controls & Safety: Includes a NEMA 4X washdown-rated control panel with E-stop. An optional Variable Frequency Drive (VFD) enables precise speed regulation for different flow stages, along with motor overload protection.
-
Hygienic-by-Design Construction: All wetted parts are crafted from 316L stainless steel with electropolished surfaces (Ra < 0.4µm) to minimize product adhesion and maximize cleanability. This is what sets a premium stainless steel pump cart apart from generic alternatives.
5. Why SKE? Not Just Equipment—Process Synergy
Many suppliers sell pump carts. SKE delivers engineered process solutions backed by deep application expertise—ensuring your stainless steel pump cart performs flawlessly from day one.
-
Engineering Collaboration, Not Just Assembly: We don’t simply bolt parts together. SKE engineers analyze your flow rate, total dynamic head, and Net Positive Suction Head (NPSH) to ensure perfect pump sizing—avoiding energy-wasting oversizing or performance-killing undersizing.
-
Zero-Dead-Leg Fabrication: Unlike manual welding, SKE uses orbital TIG welding to produce smooth, continuous internal welds. This eliminates crevices where bacteria can hide—a critical differentiator for pharmaceutical and high-end food applications.
-
True Customization: Whether you need an explosion-proof motor, a heat-tracing jacket (to maintain product temperature), or an integrated HMI touchscreen for data logging, SKE delivers tailor-made solutions.
-
Global Spare Parts Availability: We provide detailed wear-part schedules and maintain global inventory to ensure 5-year+ serviceability, minimizing unplanned downtime and protecting your production schedule.
6. A 3-Step Maintenance Protocol for Your Stainless Steel Pump Cart
While the stainless steel frame of your stainless steel pump cart is virtually indestructible, the pump assembly requires routine care. Follow these three steps to ensure decades of reliable service:
-
Post-Run Flush (Critical): After transferring high-viscosity or sugar/salt-laden products, immediately flush the system with water or a compatible solvent. This prevents product crystallization inside the mechanical seal—the #1 cause of premature seal failure.
-
Weekly Seal Inspection: Visually check the pump base for any dripping. Mechanical seals are consumable items. Replacing them at the first sign of minor weeping (a 5-minute job) prevents costly damage to rotors or shafts.
-
Electrical Safety Protocol: During washdowns, ensure the control panel door is securely latched. Never direct high-pressure spray at the VFD heat sink—moisture ingress is a common but entirely preventable electrical hazard.
7. Frequently Asked Questions About Stainless Steel Pump Carts
Q: Can a stainless steel pump cart handle thick products like honey or fruit jam?
A: Absolutely. By specifying a positive displacement pump (e.g., lobe or progressive cavity pump), your stainless steel pump cart delivers strong suction and gentle handling—ideal for high-viscosity, shear-sensitive materials.
Q: Why is the frame 304 SS while the pump is 316L SS on a stainless steel pump cart?
A: This is a cost-effective, performance-optimized strategy. 316L contains molybdenum for enhanced resistance to chlorides (found in salt solutions and some sanitizers)—so all wetted parts use 316L. The 304 frame is more than sufficient for external environmental exposure, balancing durability with cost efficiency.
Q: Do I really need a Variable Frequency Drive (VFD) on my stainless steel pump cart?
A: If you require both high flow during initial filling and precise, low-flow metering toward the end of a batch, or if you handle products with varying viscosities, a VFD is essential. It eliminates the need for complex bypass loops and provides infinitely adjustable flow control.
Q: How long does a stainless steel pump cart typically last?
A: With proper maintenance, a high-quality stainless steel pump cart can easily last 15-20 years or more. The stainless steel frame itself is virtually permanent; only wear parts like seals and gaskets require periodic replacement.
8. Optimize Your Fluid Process with a Stainless Steel Pump Cart Today
Stop letting fixed equipment dictate your production layout—and stop risking your brand reputation with outdated, rust-prone hardware. Let SKE’s sanitary, mobile stainless steel pump carts become the most flexible and reliable “team members” in your facility.
